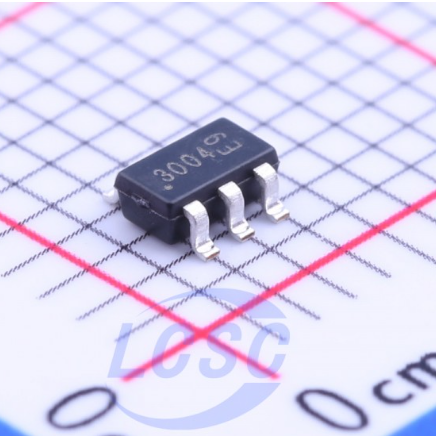

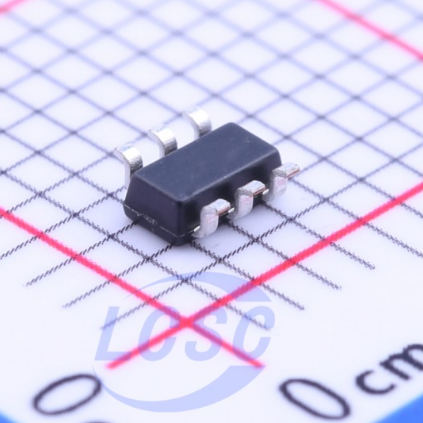

ZXGD3004E6TA SMD Gate Driver SOT-23-6 40V 8A 3004 DIODES

Product Features:

• High-speed non-inverting MOSFET / IGBT gate driver
• Peak source and sink output current: 8A
• Supply voltage up to 40V
• Ultra-fast propagation delay: 1ns typ.
• Rise and fall time: 14ns typ. with 1500pF load
• Near-zero quiescent supply current
• Optimized pinout for low parasitic inductance and improved PCB layout
• Suitable for SMPS, DC-DC converters, inverters, and motor control applications
• AEC-Q101 qualified, RoHS compliant, and halogen-free

Manufacturer: DIODES
Manufacturer Part Number: ZXGD3004E6TA
Package: SOT-23-6
Marking Code: 3004
Mounting Type: Surface Mount (SMD)
