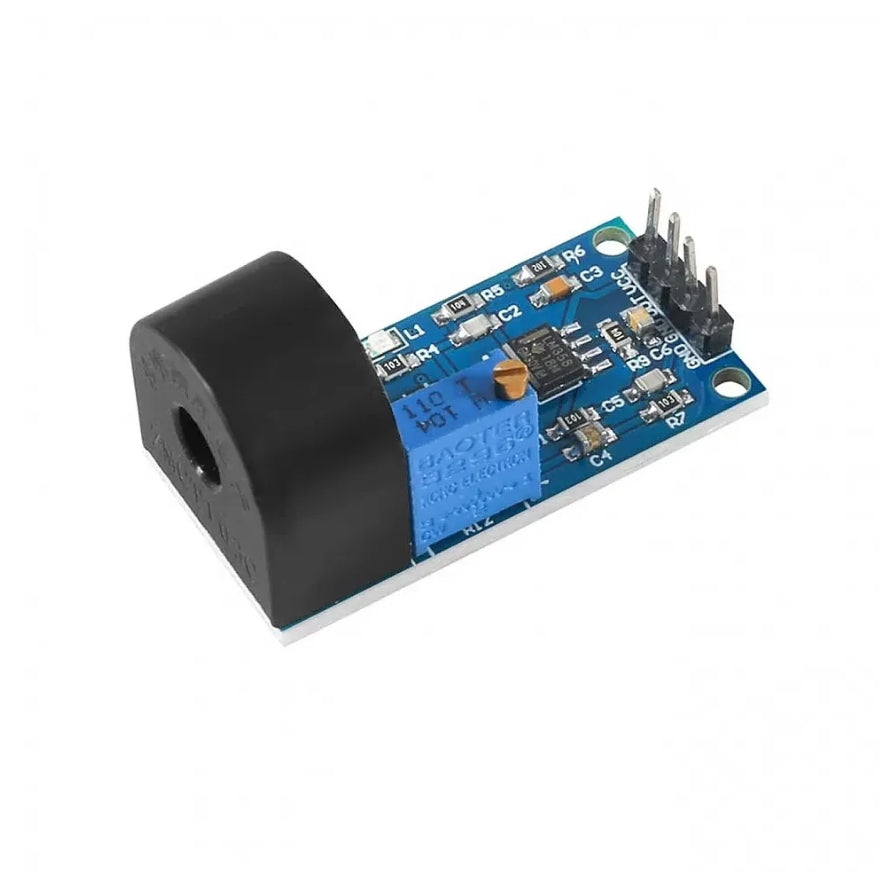

ZMCT103C 5A Current Sensor Module Single Phase AC ZMCT-103C

Specification:

1. Current Ratio: 5 A:5 mA
2. Rated Primary Current at 50/60 Hz: 5 A
3. Winding D.C. Resistance at 20 °C: 155 Ω
4. Maximum Primary Current at 50/60 Hz: 20 A
5. Transformer Turns Ratio: Np:Ns = 1000:1
6. Isolation Voltage: 4500V
7. Onboard sampling resistor, to drop the voltage to lower levels
8. Operating Temperature: -40 to 85 °C
9. Pin Length of the secondary coil (encapsulation) > 3mm
10. Epoxy Encapsulation
