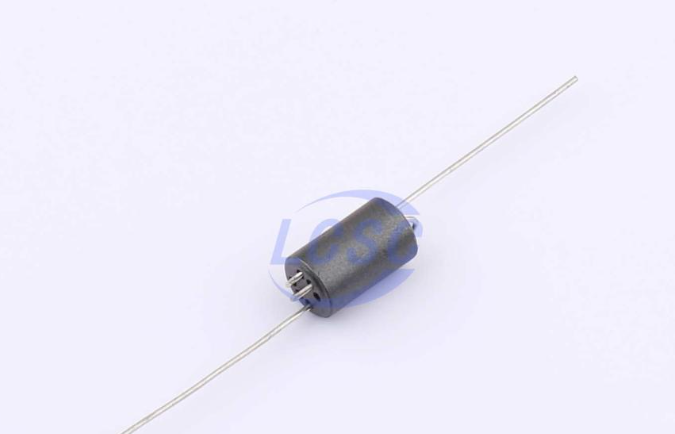

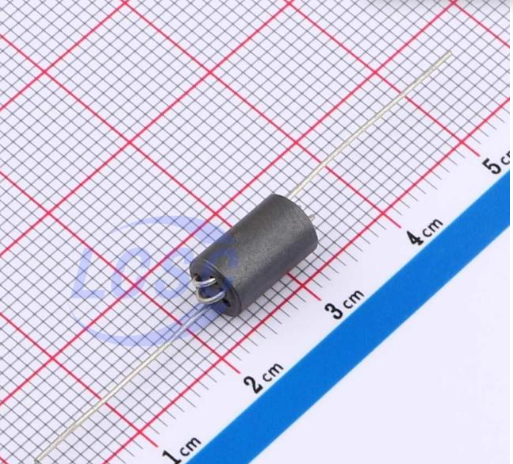

600 Ohm Ferrite Bead @100MHz 3A ZER6H-6*10-2.5T ZE

Product Features:

• Six-hole ferrite bead for EMI suppression applications
• Impedance: 600Ω minimum @ 100MHz
• Nickel-core ferrite material
• Compact size with high-current capability
• Maximum current support up to 3A
• High impedance for effective electromagnetic interference filtering
• Designed for DC power supply and signal line filtering
• Widely used in PCB boards to suppress external electromagnetic noise interference
• Operating temperature range: -25°C to +85°C
• Storage temperature range: -20°C to +85°C
• Solder heat resistance: 270±5°C for 10±1s
• Solderability requirement: 95% minimum lead coverage
• RoHS compliant and environmentally friendly

Manufacturer: ZE
Manufacturer Part Number: ZER6H-6*10-2.5T
Package: Through-Hole Ferrite Bead (6mm × 10mm, 6-Hole)
Marking Code: ZER6H
Mounting Type: Through Hole
