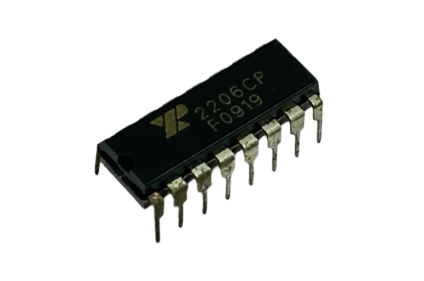

XR2206 IC Monolithic Function Generator XR2206

Product Overview

The XR-2206 is a monolithic function generator integrated circuit capable of producing high-quality sine, square, triangle, ramp, and pulse waveforms. Its output waveforms can be both amplitude and frequency modulated by an external voltage, operating over a wide frequency range from 0.01Hz to more than 1MHz. The device is ideally suited for communications and instrumentation applications requiring AM, FM, or FSK generation.

Core Specifications

Manufacturer: EXAR Corporation

Function: Monolithic Function Generator
