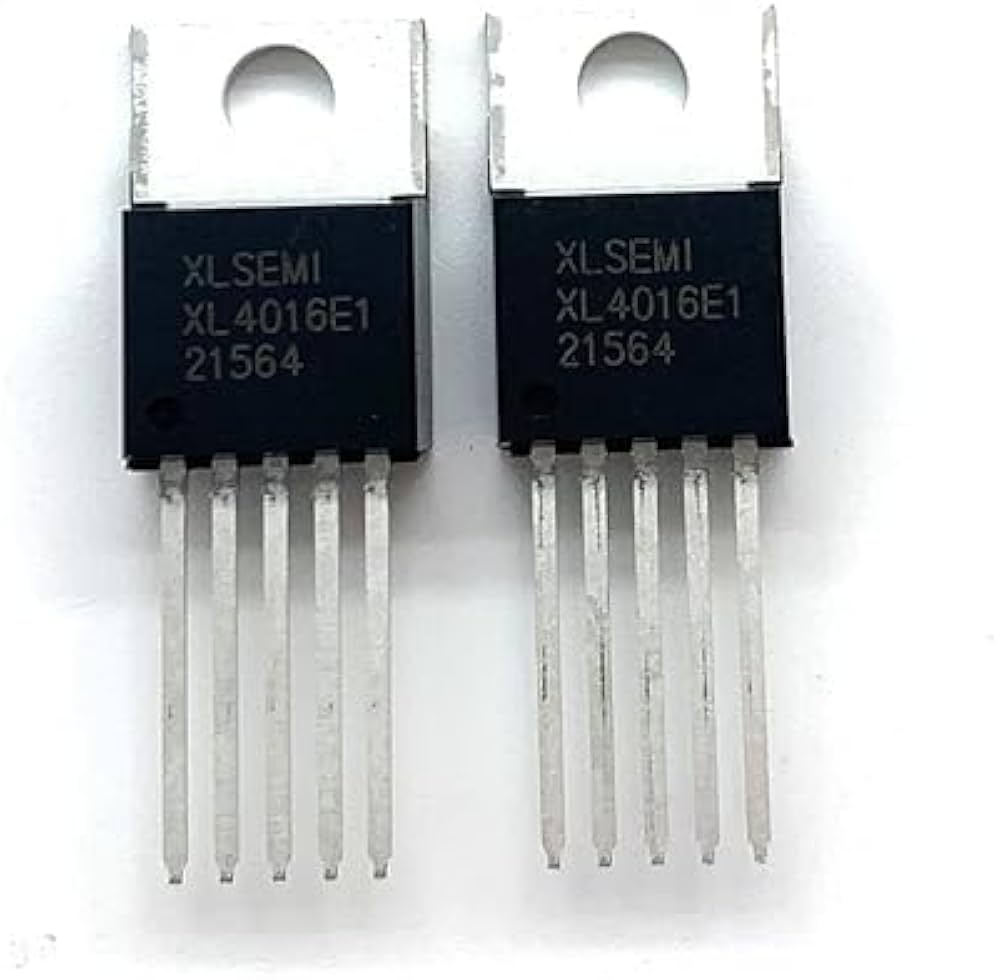

XL4016E1 IC TO-220-5 XLSEMI 12A 40V XL4016E1

Product Overview

The XL4016 is a 180 kHz fixed-frequency PWM buck (step-down) DC-DC converter capable of driving a 8 A load with high efficiency, low ripple, and excellent line and load regulation. It is designed for high-power applications, requiring a minimum number of external components to function, and includes internal frequency compensation and a fixed-frequency oscillator to simplify power supply designs.

Core Specifications

• Manufacturer: XLSEMI

• Package Type: TO-220-5L

• Function: 8 A 180 kHz 40V PWM Buck DC-DC Converter

• Input Voltage: Wide operating range up to 40V

• Output Voltage: Adjustable output version from 1.25V to 35V

• Control Interface: Includes a built-in output enable function (via the EN pin) and internal thermal shutdown and current limit protection.
