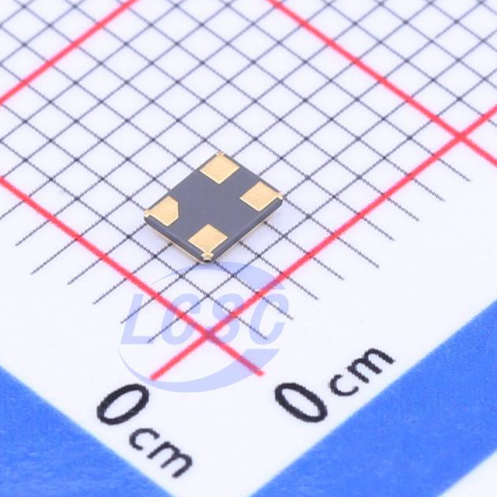

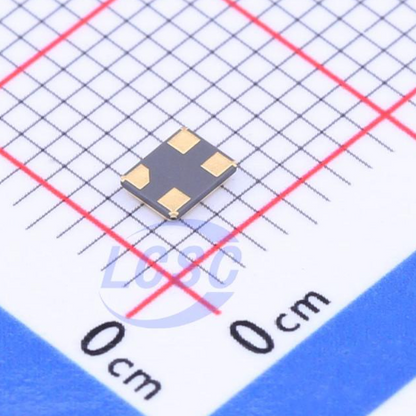

8MHz SMD Crystal Oscillator SMD3225-4P

Product Features:

• 8MHz fundamental-mode quartz crystal resonator with AT-cut design
• Frequency tolerance: ±10ppm at 25°C with temperature stability of ±20ppm
• Load capacitance: 12pF with maximum ESR of 150Ω
• Operating temperature range: -40°C to +85°C
• Low power drive level up to 100µW for efficient circuit operation
• Compact 3.2 × 2.5mm SMD package, suitable for space-constrained designs
• Designed for reliable performance with reflow soldering and long-term stability

Manufacturer: YXC Crystal Oscillators
Manufacturer Part Number: X32258MOB4SI
Package: SMD3225-4P

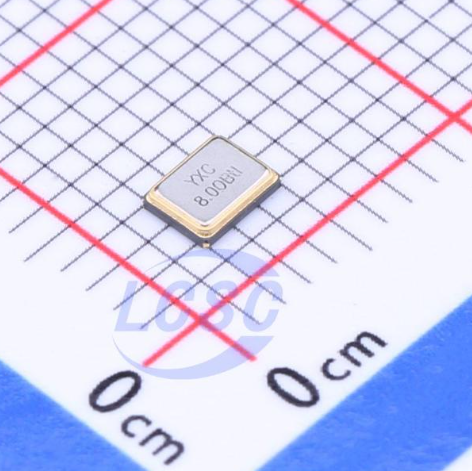

Marking Code: YXC / 8.000 / Load Capacitance / Temperature Code
Mounting Type: Surface Mount (SMD)
