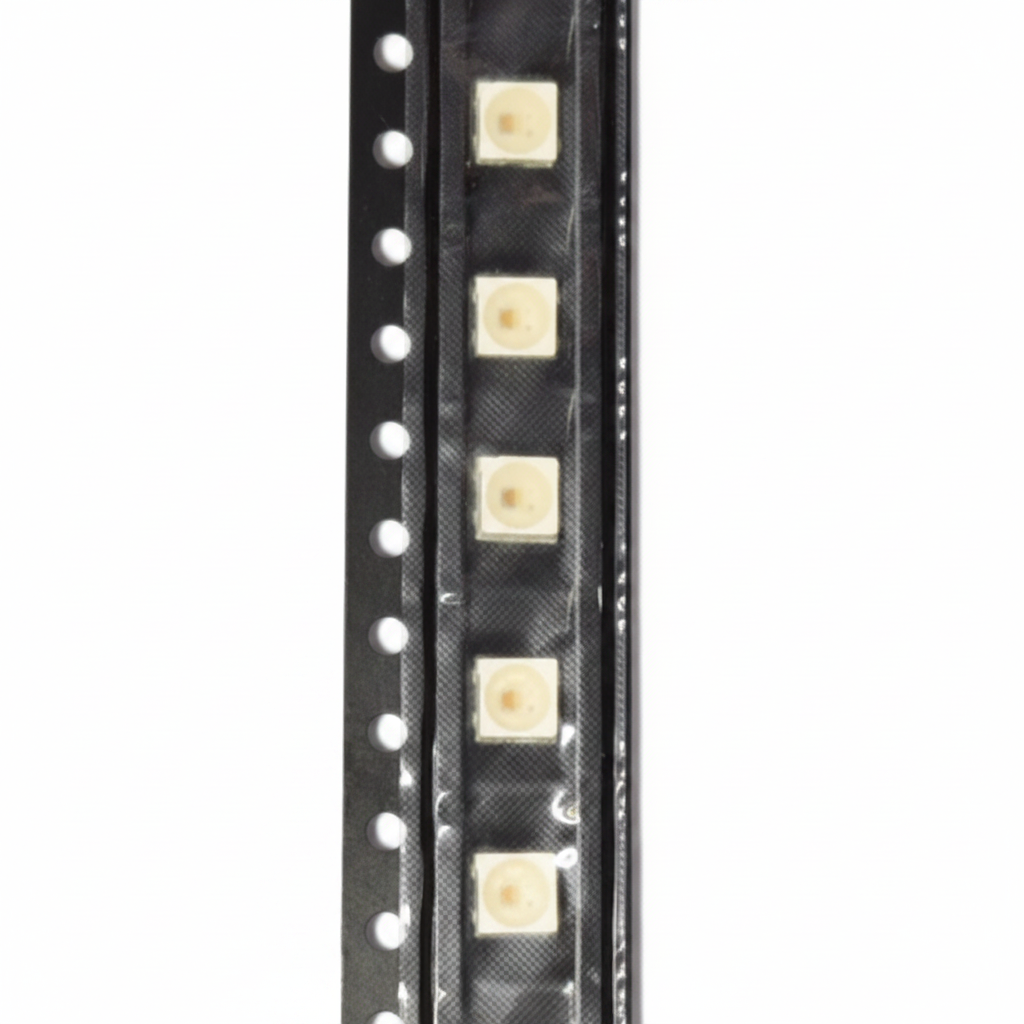

WS2815B-MINI-4P Addressable LED Worldsemi 12V SMD 3.5x3.5mm

Product Overview: A surface-mount intelligent control LED light source that integrates the control circuit and RGB chip into a single ultra-compact package. Designed for high-reliability and large-scale addressable lighting applications, it operates on a 12V power supply to minimize voltage drop over long distances and features dual-signal wires for continuous data transmission even if a single pixel fails.

Core Specifications:

• Manufacturer: Worldsemi

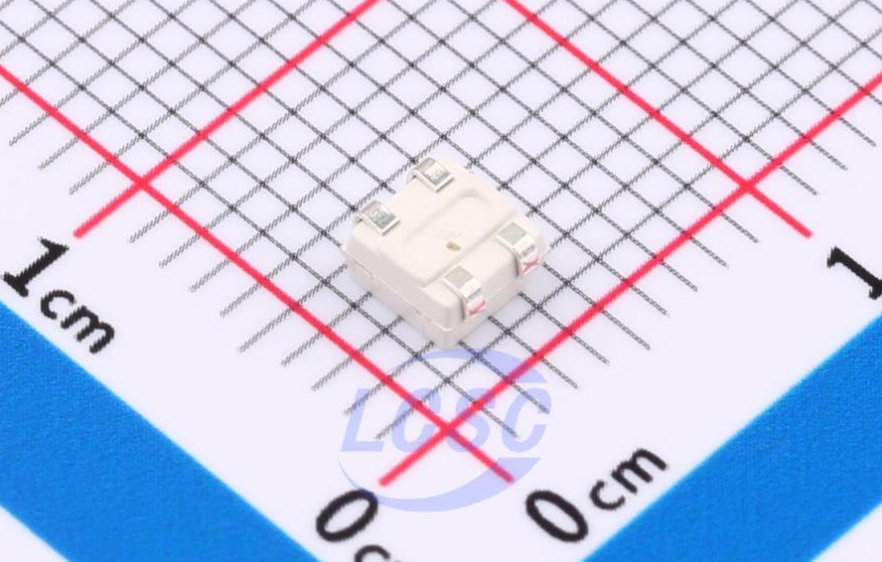

• Package Type: SMD 3.5x3.5mm (4-Pin Mini footprint)

• Function: Addressable RGB LED (with redundant data line)

• Operating Voltage: 12V DC

• Control Interface: Single-wire data protocol (Cascade configuration with backup data transmission)

• Series: 2815 (WS2815B-MINI-4P)
