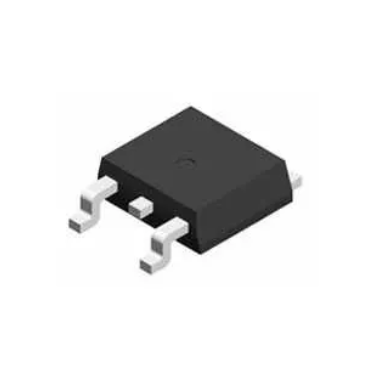

WGD20N03S SMD MOSFET N-Channel TO252 30V 20A 20n03 Wild Goose WGD20N03S

Product Overview

A surface-mount N-Channel power MOSFET designed using advanced high-cell-density trench technology. It provides excellent on-resistance ($R_{DS(on)}$) and low gate charge performance, making it highly efficient for synchronous buck converters, low-voltage switching, and generic power management applications.

Core Specifications

• Manufacturer: Wild Goose (WildGoose Semiconductor)

• Package Type: TO-252 (DPAK)

• Function: SMD MOSFET (N-Channel)

• Voltage Rating: 30V

• Current Rating: 20A

• Power Dissipation: 35W

• Static On-Resistance ($R_{DS(on)}$): * ~15 mΩ (typical @ $V_{GS}$ = 10V)

  • ~21 mΩ (typical @ $V_{GS}$ = 4.5V)

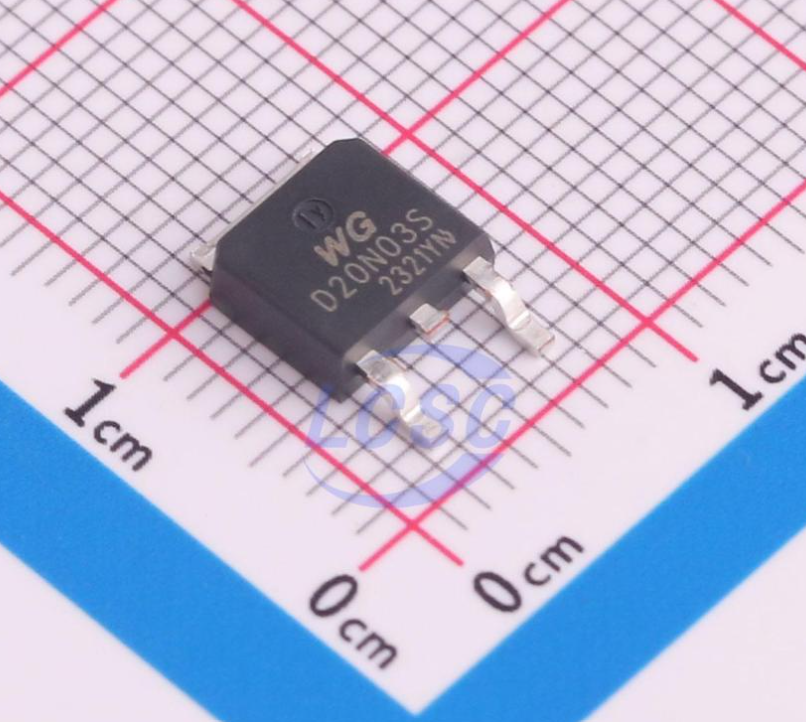

• Marking Code: 20n03

• Part Number: WGD20N03S
