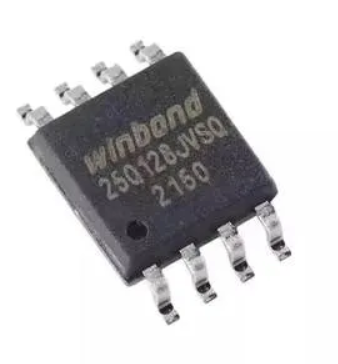

W25Q128JVSIQ SMD IC SOP8 SOIC8 WINBOND W25Q128JVSIQ

Product Overview:

A surface-mount, 128-megabit (16MB) serial flash memory integrated circuit featuring high-speed Dual/Quad SPI interfaces. It is designed for industrial and high-performance embedded systems requiring reliable, non-volatile data storage for firmware, boot code, or configuration data.

Core Specifications:

Manufacturer: Winbond

Package Type: Available in various packages, including SOIC (208-mil and 300-mil), WSON, and TFBGA

Function: Serial Flash Memory

Input Channels: N/A (Memory/Storage Component)

Control Interface: SPI (Single, Dual, or Quad mode)

Features:

• High-density 128M-bit (16,777,216 bytes) storage capacity

• Supports standard SPI, Dual-I/O SPI, and Quad-I/O SPI protocols

• High-performance clock frequency: up to 104 MHz

• Low power consumption with wide operating voltage range: 2.7V to 3.6V

• Flexible sector architecture (4KB, 32KB, and 64KB erasable sectors)

• Industrial and Industrial Plus temperature grade options

• Robust data retention and endurance for embedded system reliability

Applications:

• Firmware and boot code storage for microcontrollers and SoCs

• Data logging and storage in industrial equipment

• Configuration and system parameters in consumer electronics

• High-speed peripheral data storage

• Automotive, communication, and instrumentation systems
