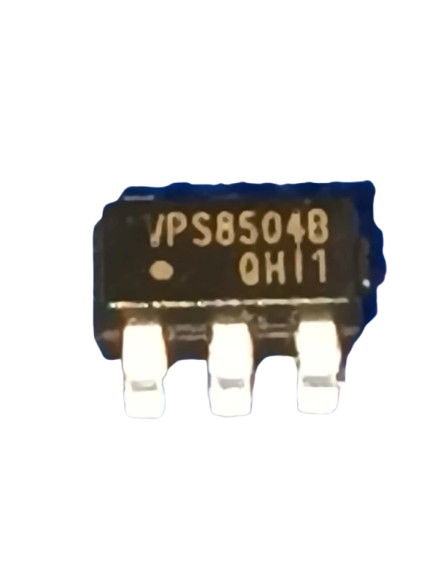

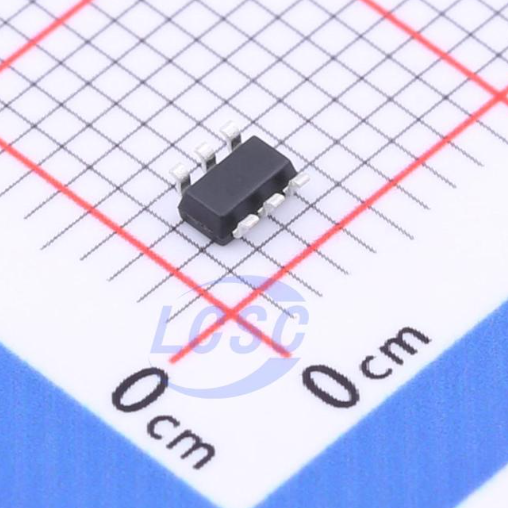

VPS8504B SMD IC Power Management SOT-23-6 VPSC

Product Features:

• Push-pull topology transformer driver
• High integration with minimal external components
• Built-in 24V / 0.1Ω LDMOS power MOSFETs
• Input voltage range: 2.8V to 6V
• Output voltage support: 3.3V to 24V
• Suitable for 1W to 3W isolated DC-DC converters
• Continuous output current capability: 1A
• Current clamp protection with 1.7A limit
• Two selectable switching frequencies: 217kHz and 390kHz
• Integrated break-before-make (BBM) dead-time control
• Low standby current: 5.2µA typ when disabled

Manufacturer:  VPSC
Manufacturer Part Number: VPS8504B
Package: SOT23-6
Marking Code: VPS8504B
Mounting Type: Surface Mount (SMD)
