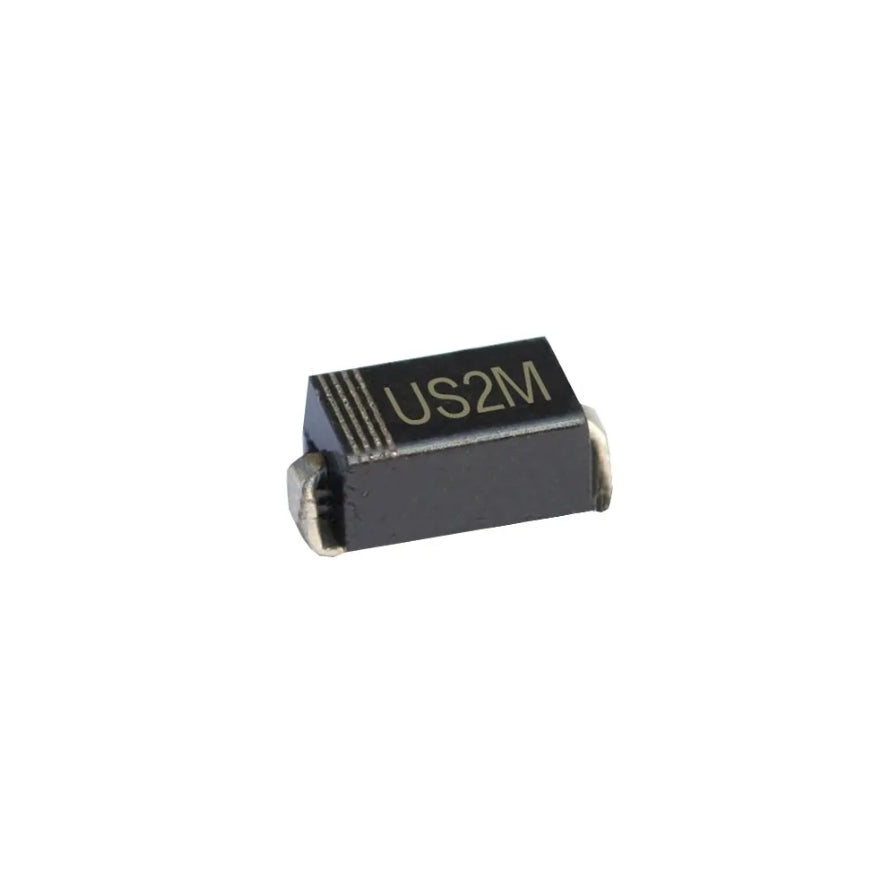

US2M Diode SMD SMA HXY Fast Recovery Diode 1000V 2A US-2M

The US2M is a 1000V, 2A surface-mount ultra-fast recovery rectifier diode manufactured by Shenzhen HuaXuanYang Electronics Co., Ltd. (HXY) for high-frequency rectification, freewheeling paths, and switching mode power supply applications. Housed in a compact surface-mount DO-214AC (SMA) molded plastic package, this discrete component features a single diode configuration designed with a low profile to optimize automated board placement. It operates with a maximum repetitive peak reverse voltage of 1000V and an average forward rectified current of 2A while exhibiting a maximum forward voltage drop of 1.7V at a 2A test current. Engineered with an ultra-fast reverse recovery time of 75 ns and a high non-repetitive peak forward surge current capability of 50A, this robust device delivers reliable performance across an operating junction temperature range from minus 55 to plus 150 degrees Celsius.
