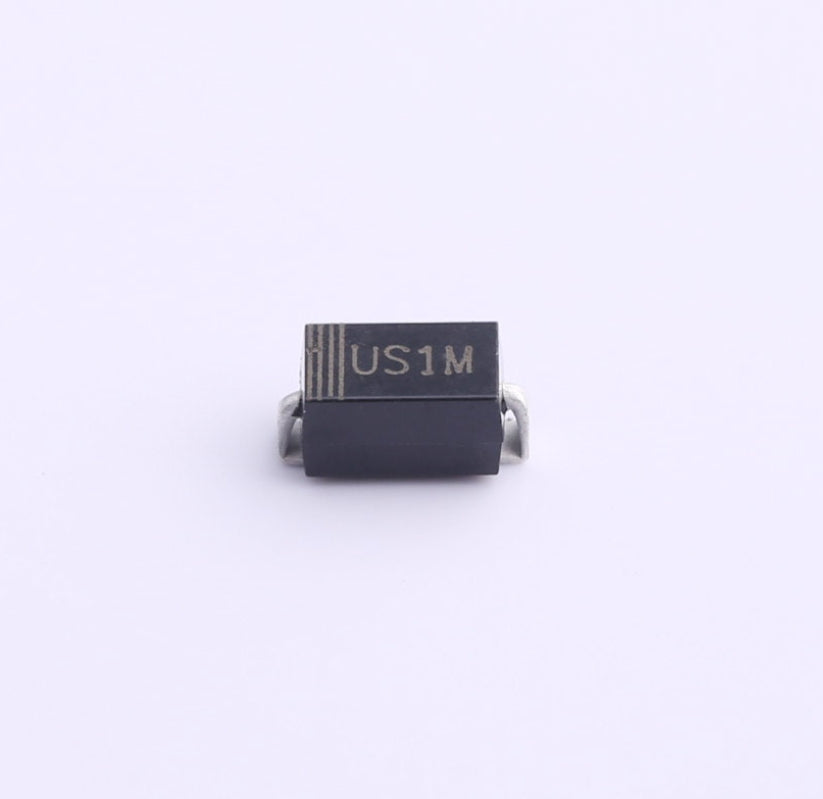

US1M 1A 1000V ULTRAFAST RECTIFIER SMD

The US1M is a 1000V, 1A surface-mount ultra-fast recovery rectifier diode manufactured by Diodes Incorporated for high-frequency rectification, freewheeling paths, and switching mode power supply applications. Housed in a compact surface-mount DO-214AC (SMA) molded plastic package, this discrete component features a single diode configuration designed with a low profile to optimize automated board placement. It operates with a maximum repetitive peak reverse voltage of 1000V and an average forward rectified current of 1A while exhibiting a maximum forward voltage drop of 1.7V at a 1A test current. Engineered with an ultra-fast reverse recovery time of 75 ns and a high non-repetitive peak forward surge current capability of 30A, this robust device delivers reliable performance across an operating junction temperature range from minus 55 to plus 150 degrees Celsius.
