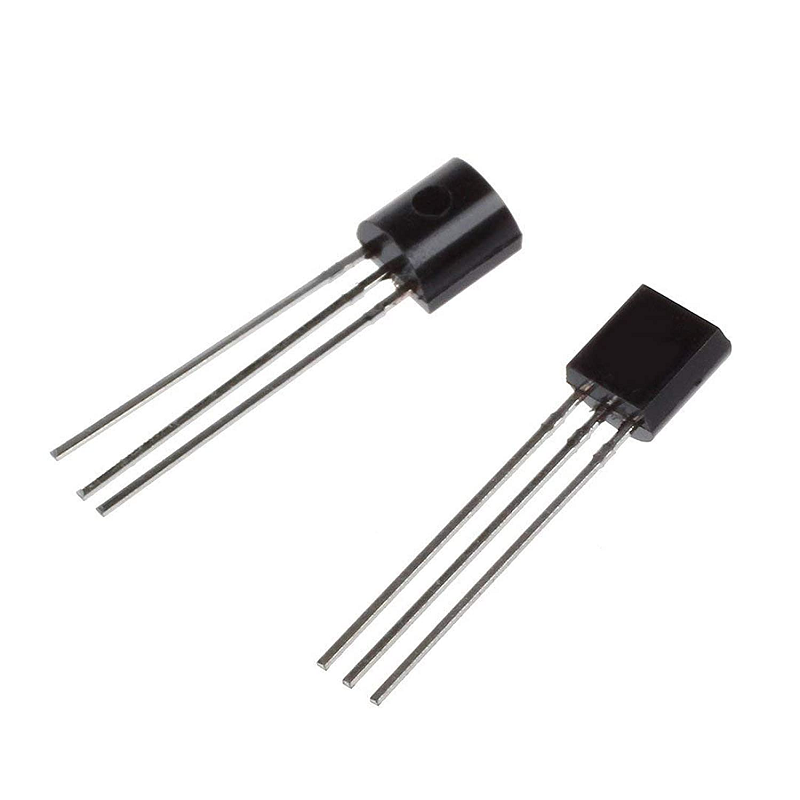

UM66T19LK-1 IC TO92 UTC Melody Generator Musical Alarm

Product Overview

A low-power CMOS melody integrated circuit (IC) designed for use in door bell, telephone, and toy applications. It features an on-chip mask ROM programmed for musical performance, capable of memorizing a 64-note melody. Because it includes built-in oscillation circuits, a compact melody module can be constructed with only a few additional components. The device also incorporates a power-on reset function so that the melody always begins from the first note, a built-in level hold mode, and an output pin capable of driving a buzzer directly or a dynamic speaker via an external NPN transistor.

Core Specifications

• Manufacturer: UNISONIC TECHNOLOGIES CO., LTD (UTC)

• Package Type: TO-92

• Function: CMOS Melody Integrated Circuit / On-Chip ROM Musical Performance LSI (UM66TXXL Series)

• Input Voltage: 1.5V to 4.5V DC supply voltage range

• Control Interface: Simple 3-pin configuration featuring Pin 1 (VSS), Pin 2 (VDD), and Pin 3 (O/P melody output).
