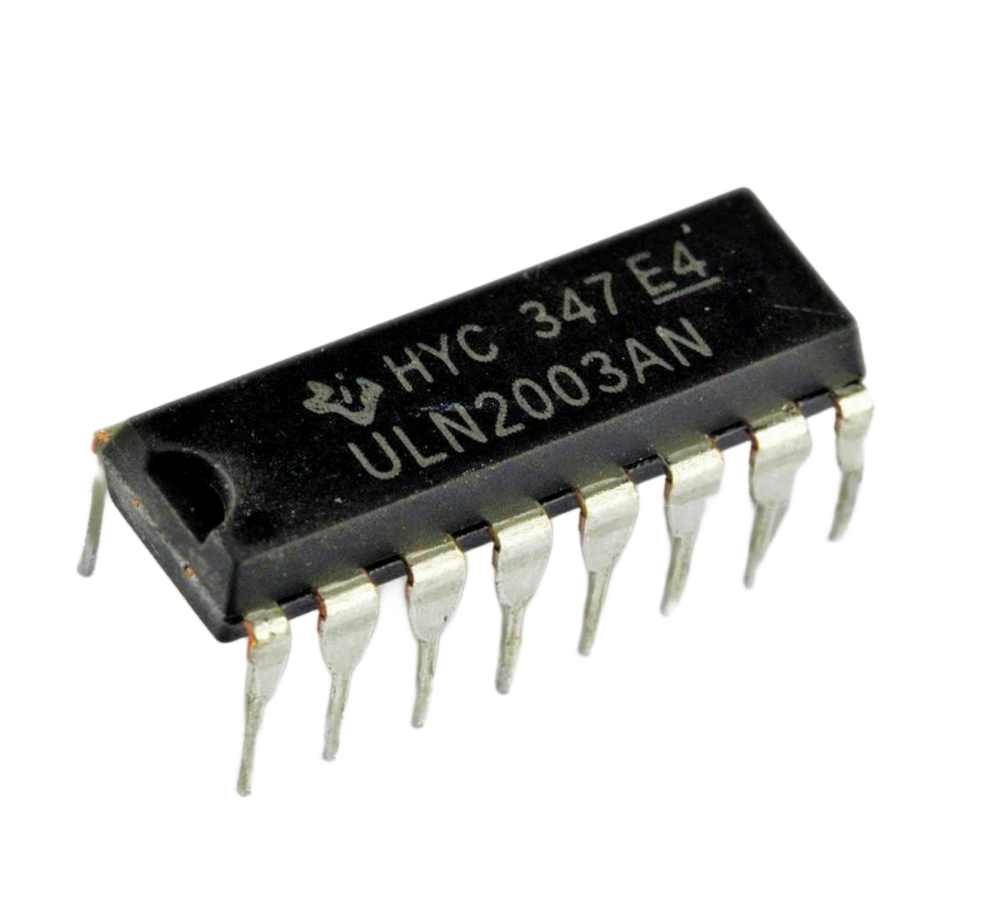

ULN2003AN IC DIP16 TI 2003 ULN2003AN

Product Overview

The ULN2003AN is a high-voltage, high-current Darlington transistor array designed to interface low-level logic circuits with higher-power loads. It consists of seven independent npn Darlington pairs featuring high-voltage outputs with common-cathode clamp diodes for switching inductive loads. This device is commonly used to drive relays, lamps, solenoids, small motors, and other demanding electrical loads from standard microcontrollers or logic families.

Core Specifications

• Manufacturer: Texas Instruments

• Package Type: N Package (Plastic Dual In-Line Package, 16-Pin PDIP)

• Function: Seven-Channel Darlington Transistor Array

• Output Current: 500 mA rated collector current per single output channel

• Output Voltage: High-voltage outputs up to 50 V

• Control Interface: Inputs are compatible with various types of logic, featuring integrated 2.7 kΩ base resistors for direct operation with 5 V TTL or CMOS devices.
