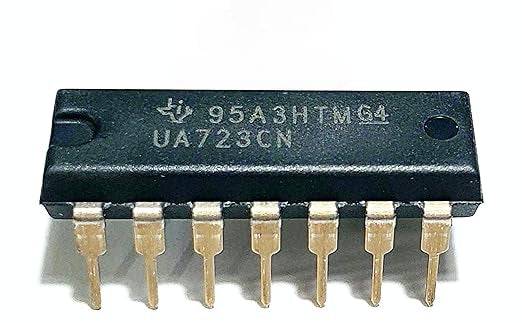

UA723CN IC voltage regulator TI DIP-14 UA723CN

Product Overview: The uA723CN is a precision integrated-circuit voltage regulator featuring high ripple rejection, excellent input and load regulation, excellent temperature stability, and low standby current. The circuit consists of a temperature-compensated reference-voltage amplifier, an error amplifier, a 150-mA output transistor, and an adjustable-output current limiter. It is designed for use in positive or negative power supplies as a series, shunt, switching, or floating regulator.

Core Specifications:

• Manufacturer: Texas Instruments Incorporated

• Package Type: 14-pin PDIP (N) package

• Function: Precision voltage regulator capable of handling up to a 150-mA load current without an external power transistor, featuring an adjustable output from 2 V to 37 V
