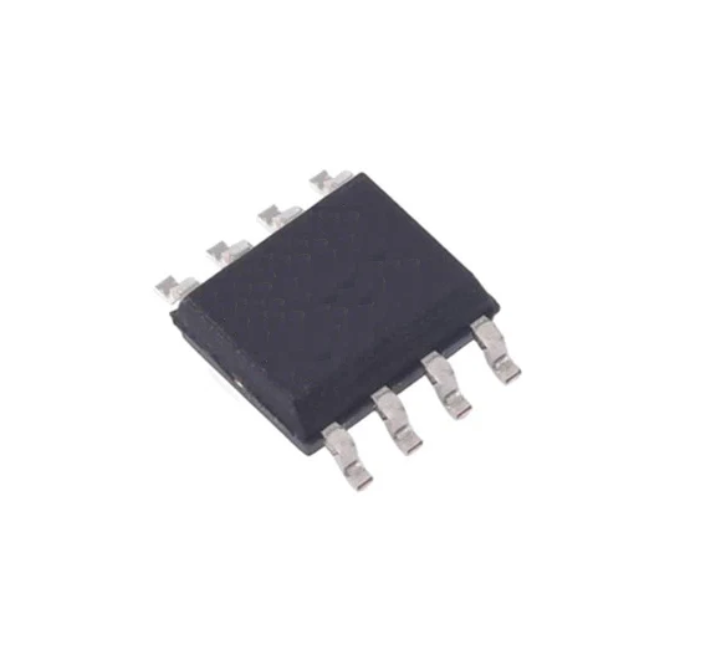

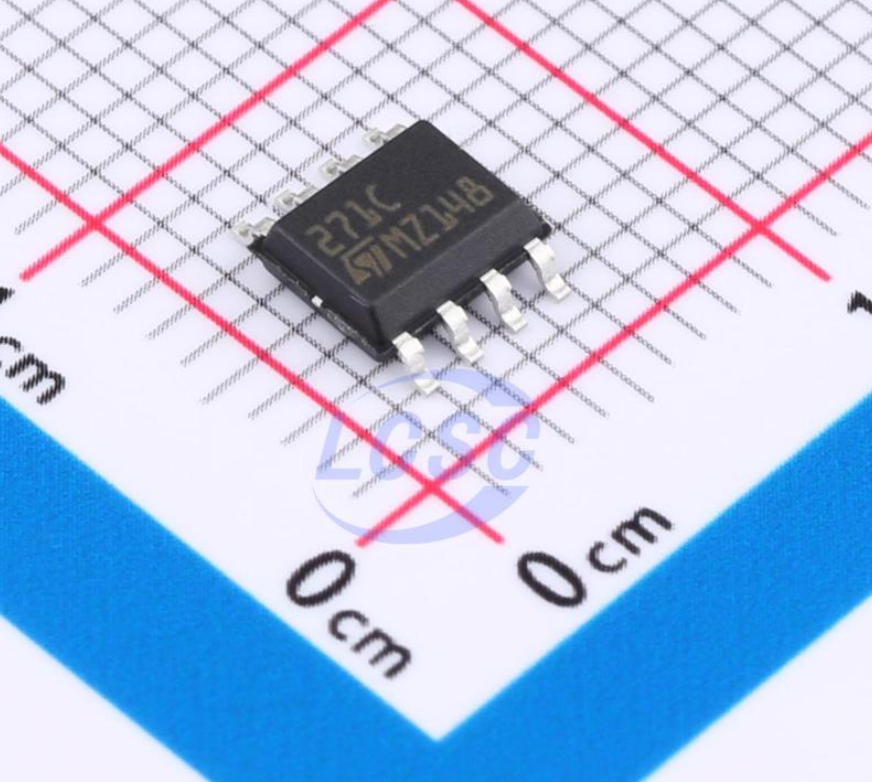

TS271C SMD IC Op Amp ST SOIC8 TS271CDT

Product Overview:
A low-cost, low-power single CMOS operational amplifier designed for applications requiring programmable performance. It operates with single or dual supplies and features an externally programmable power supply current, allowing users to optimize the consumption-to-speed ratio.

Core Specifications:

Manufacturer: STMicroelectronics

Package Type: DIP8 (Plastic Package), SO-8 (Plastic Micropackage)

Function: CMOS Programmable Single Operational Amplifier

Input Channels: Single

Control Interface: Programmable $I_{SET}$ (via external resistor)

Features:

* Programmable power consumption (via resistor between pins 8 and 4)
* Three specified $I_{SET}$ current values: 1.5 µA, 25 µA, 130 µA
* Output voltage swing to ground
* Stable and low offset voltage
* Very high input impedance and extremely low input currents
* Offset null capability (by external compensation)

Applications:

• Low-power consumption electronic systems
  * Battery-powered applications
  * Signal conditioning and amplification
  * Portable instrumentation
  * Circuits requiring optimized power-speed trade-offs
