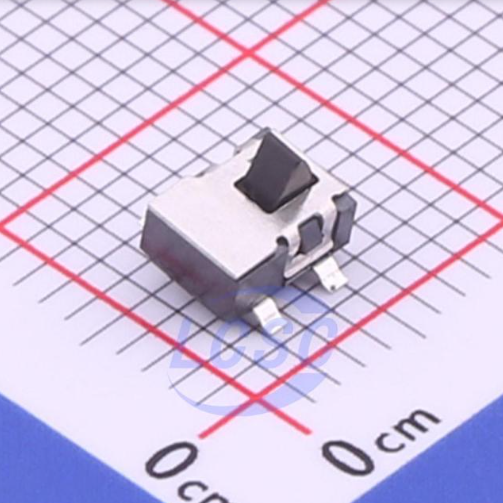

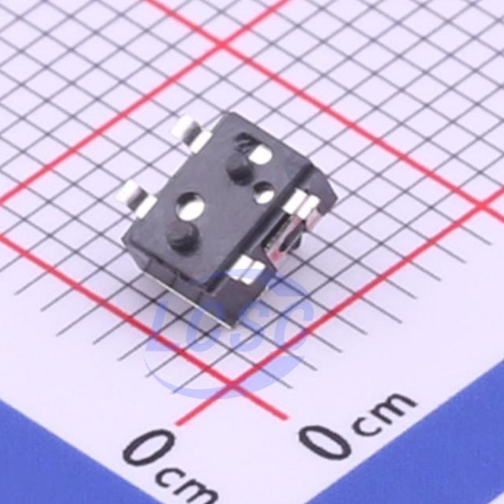

TS-103 SMD Switch SPST Limit switch 4.8x3.6mm SHOU HAN

Product Features:

• Rated voltage: DC 12V, 50mA max.
• Contact resistance: ≤150mΩ
• Insulation resistance: ≥100MΩ
• Operating force: 30±20gf
• Mechanical life: 50,000 cycles min.
• Operating temperature: −30°C to +85°C

Manufacturer: SHOU HAN
Manufacturer Part Number: TS-103
Package: SMD Detection / Limit Switch
Marking Code: TS-103
Mounting Type: Surface Mount (SMD)
