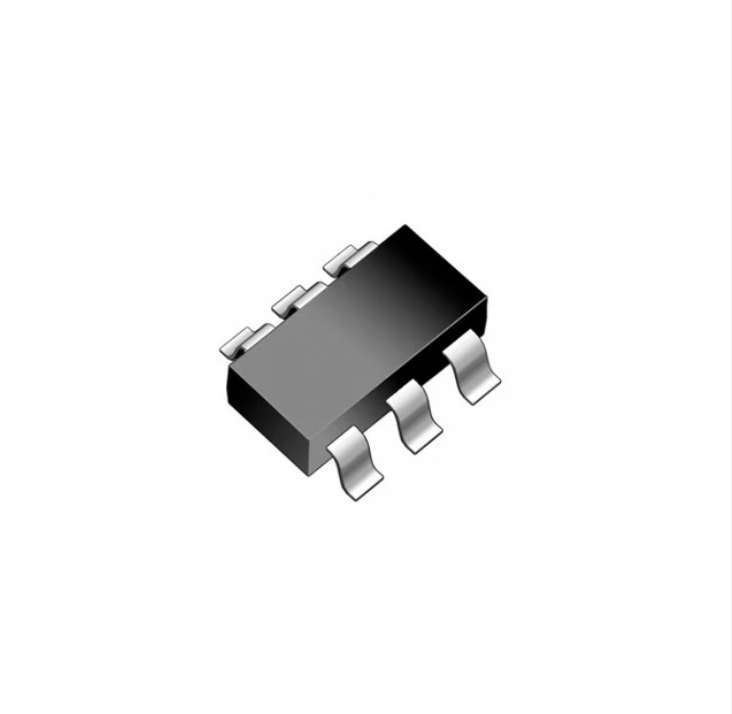

TPL5010DDCR SMD IC Timer / Counter SOT23-6 TI TPL5010DDCR

Product Overview:

A nano-power system timer integrated circuit with an integrated watchdog function, designed to minimize system power consumption by managing periodic wake-up cycles in duty-cycled, battery-operated applications.

Core Specifications:

Manufacturer: Texas Instruments

Package Type: SOT-6 (Thin SOT)

Function: Nano-Power System Timer with Watchdog

Input Channels: N/A (Timing/Supervisor Component)

Control Interface: Resistor-selectable timing intervals

Features:

• Ultra-low current consumption: 35 nA (typical at 2.5 V)

• Programmable time intervals: 100 ms to 7200 s

• Timer accuracy: 1% (typical)

• Integrated watchdog functionality to ensure system reliability

• Supports manual reset

• Supply voltage range: 1.8 V to 5.5 V

Applications:

• Battery-powered Internet of Things (IoT) devices

• Remote sensor nodes and home automation sensors

• Intruder and tamper detection systems

• Thermostats and white goods

• Low-power duty-cycled electronic systems
