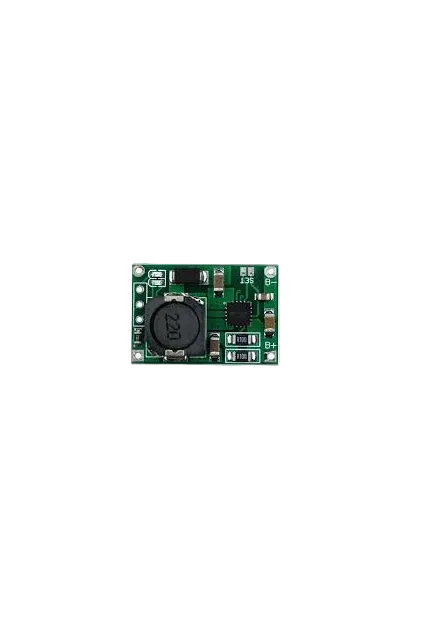

TP5100 Module 4.2v and 8.4v Dual One/Two Battery Protection Board TP5100

Features:

• Double 8.4v / 4.2v lithium rechargeable single
• Programmable charge current. 0. 1A-2A
• Programmable steady recharge current 10% -100%
• Wide operating voltage, maximum reach I8V
• Red and green LED charge status indicator
• Chip temperature protection, overcurrent protection, under voltage protection
• Battery temperature protection, reverse battery shutdown, short circuit protection
• Switching frequency 400Khz, usable inductance 20uH and more
• PWR_ON Power battery for switching control

Specifications:

• Model: TP5100
• Input Supply voltage (V): 5 ~ 18
• Programmable charge current: 0.1 ~ 2 A.
• Charge status: full and unloaded blue lights, charging red.
• Length (mm): 26
• Width (mm): 17
• Height (mm): 25
• Weight (gm): 5
