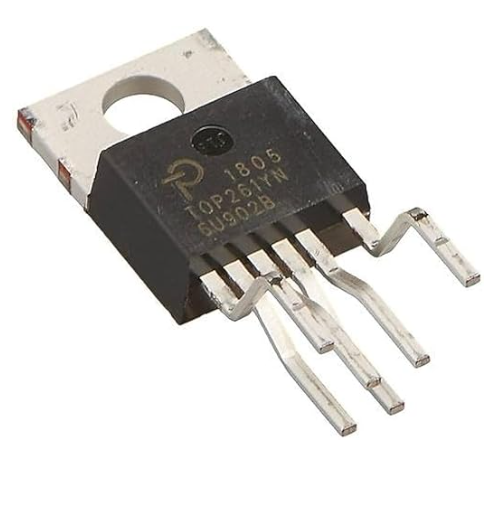

TOP261YN IC Off-line Switcher IC TOP 261 YN TOP261YN

Product Overview

The TOPSwitch-HX family (including models TOP252–TOP262) is an integrated offline switcher designed for high efficiency and design flexibility in power supply applications. It incorporates advanced features to reduce system cost and enhance performance compared to previous generations.

Technology: Integrated offline switcher with enhanced EcoSmart™ technology for energy efficiency across the entire load range.

•

  Operating Modes: Features multi-mode operation to maximize efficiency at all load conditions.

•

  Protection: Includes auto-restart for short-circuit and open-loop fault conditions, as well as accurate hysteretic thermal shutdown with automatic recovery.

Core Specifications

•

  Power Capability: Offers extended power ranges; models do not require a heat sink up to 35 W (with universal input) or up to 48 W at 230 VAC (using P, G, and M packages).

•

  Frequency: Features a 132 kHz switching frequency to reduce transformer and power supply size, with a half-frequency option available for video applications.

•

  Operating Voltage: Supports universal input voltage ranges.

Key Features

•

  Design Flexibility: * User-programmable output overvoltage protection (OVP) for latching/non-latching shutdown with fast AC reset.

  • Supports both primary and secondary sensing.

  • Line undervoltage (UV) and overvoltage (OV) detection prevent glitches and extend line surge limits.

• Efficiency and EMI:

  • Frequency jittering reduces EMI filter costs.

  • Optimized line feed-forward for improved line ripple rejection.

•

  Packaging: Available in new eSIP-7F and eSIP-7C packages, which offer low thermal impedance and extended creepage distances for improved reliability.

Applications

The TOPSwitch-HX family is highly versatile and suitable for a wide range of power supply designs, including:

•

  Adapters and Monitors: Low-profile packages make them ideal for space-constrained adapter and monitor applications.

•

  General Offline Power Supplies: Used in designs requiring high efficiency, such as flyback converters.
