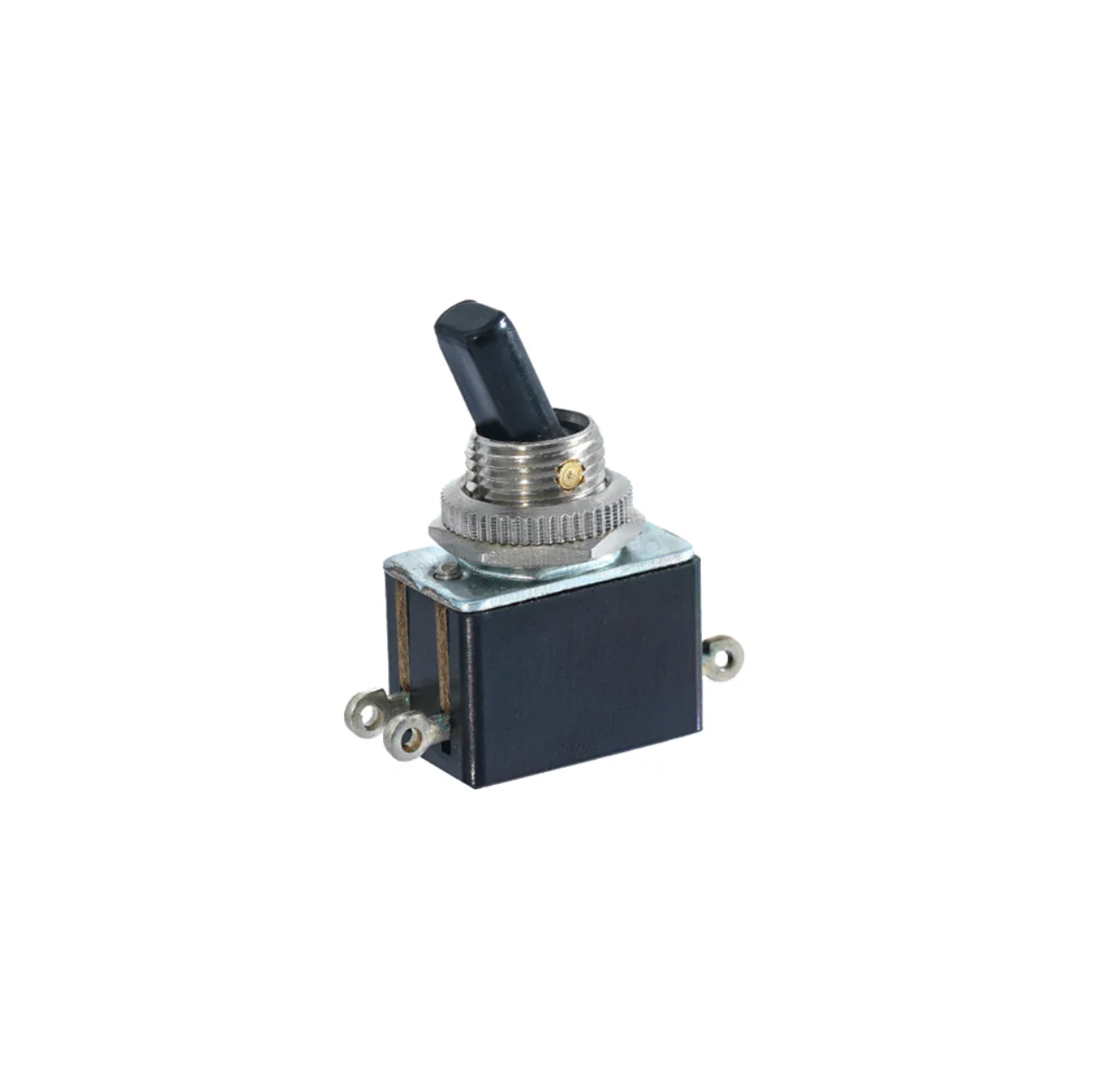

Toggle Switch SE 613 5A SPDT

Product Specifications

• Product Name: Toggle Switch SE 613 5A SPDT
• Part Number: SE 613
• Switch Type: SPDT
• Contact Rating: 1.5A at 250VAC
• Breakdown Voltage: 1kV AC / 1 minute
• Contact Resistance: <10mΩ
• Insulation Resistance: >100MΩ
• Operating Force: Approx. 800g
• Mechanical Life: 50,000 operations
• Electrical Life: 10,000 operations
• Operating Temperature: -25°C to +80°C
• Mounting: Panel / Chassis Mount
• Body Color: Black
• Housing Material: Electrical Grade Phenolic
• Toggle Knob: Polyamide 66 UL94 V3 / Chrome-Plated Brass
• Terminal Material: Silver-Plated Brass
