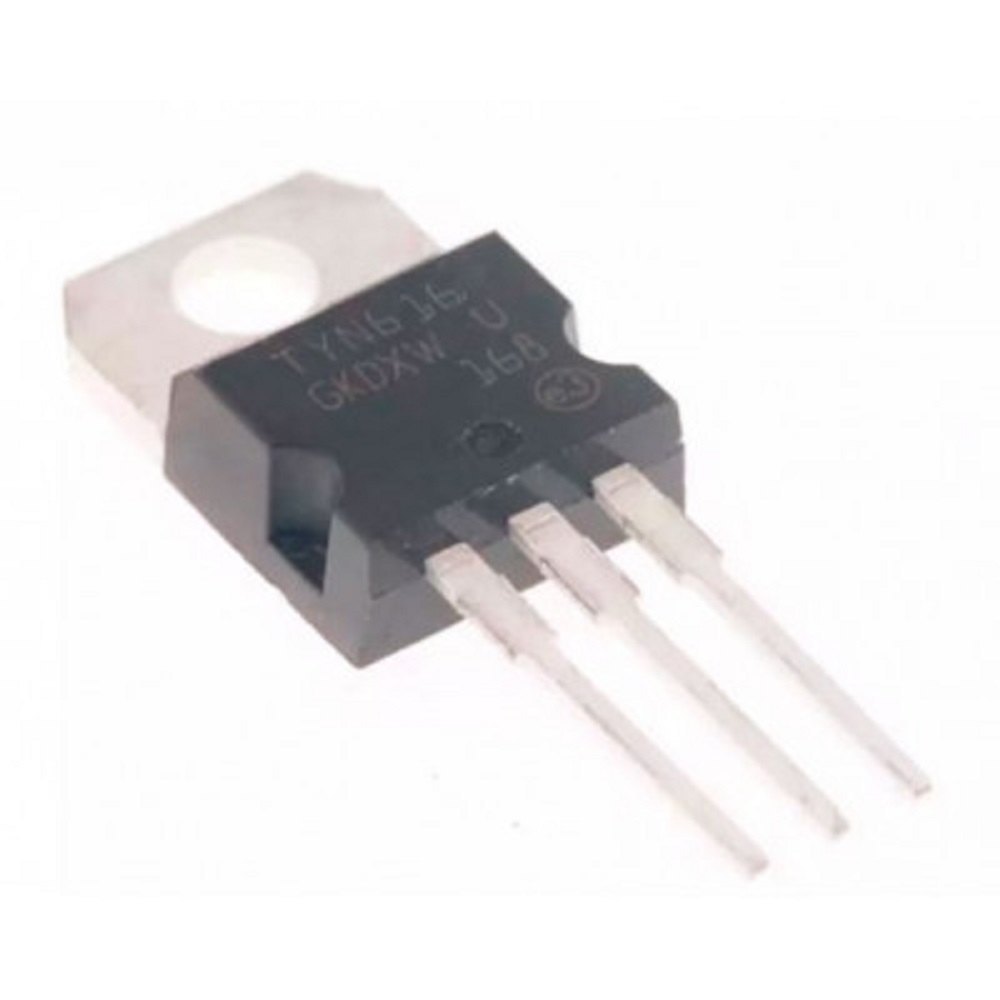

TYN616 IC Off-line Switcher IC TYN616

Product Overview

The TYN616 series is a range of standard Silicon Controlled Rectifiers (SCRs) manufactured by ShenZhen HanKingyuan Electronic Co., Ltd. These devices are designed for robust switching applications, capable of handling an R.M.S On-State Current of 16 A and blocking voltages up to 600 V or 800 V.

Core Specifications

• Manufacturer: ShenZhen HanKingyuan Electronic Co., Ltd.

• Package Types: Available in TO-220B (Non-Insulated), TO-252, TO-251, and TO-263 packages.

• Function: Standard SCR (Silicon Controlled Rectifier) for power control.

• R.M.S On-State Current: 16 A.

• Repetitive Peak Off-State Voltage: 600 V (TYN616) or 800 V (TYN816).

• Gate Trigger Voltage (VGT): 1.5 V.

Key Features

• High Current Handling: Designed to support continuous currents up to 16 A.

• Wide Voltage Range: Options available for both 600 V and 800 V systems.

• Robust Construction: Suitable for demanding electronic power control tasks in industrial and consumer equipment.

Applications

• Appliances: Commonly used in washing machines and vacuum cleaners.

• Consumer Electronics: Utilized in massagers and similar household motor-driven devices.

• Control Systems: Suitable for solid-state relays (SSRs) and AC motor speed regulation circuits.
