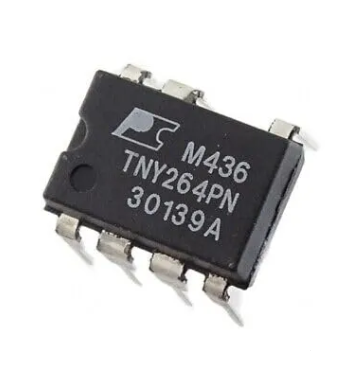

TNY264PN MOSFET Energy-Efficient Low Power Off-Line Switcher POWER INTEGRATIONS TNY264PN

Product Overview: A through-hole, low-power offline switcher integrated circuit that combines a 700V power MOSFET, oscillator, high-voltage switched current source, current limit, and thermal shutdown circuitry onto a single monolithic device. Part of the TinySwitch-II family, it is engineered for high-efficiency switch-mode power supplies (SMPS) and features EcoSmart® technology for ultra-low energy consumption during standby and no-load conditions. It is commonly used in cell phone chargers, standby power supplies, PC peripherals, and small appliance controllers.

Core Specifications:

Manufacturer: Power Integrations

Package Type: DIP-8 (Plastic DIP)

Function: Energy-Efficient Off-Line Switcher / SMPS Control IC

Maximum MOSFET Drain Voltage: 700V

Typical Output Power: 5.5W (Adapter) / 9W (Open Frame at 230 VAC)

Specific Variant: TNY264PN
