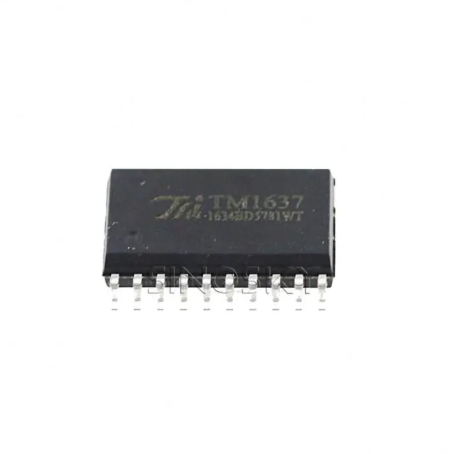

TM1637 SMD IC SOP-20 Titan Micro Electronics TM1637

Product Overview:The TM1637 is a specialized LED driver and keyboard scanning control circuit designed for small household appliances like microwave ovens and induction cookers. It combines an MCU digital interface, data latch, high-voltage LED drive, and keyboard scanning circuitry into a single monolithic package.

Core Specifications

• Manufacturer: Titan Micro Electronics

• Package Type: DIP20 / SOP20

• Function: LED Display Driver with Keyboard Scanning Interface

• Control Interface: 2-wire serial interface (CLK, DIO)

• Operating Voltage: 4.5V to 5.5V

Features

• Integrated Architecture: Employs power CMOS technology for high efficiency.

• Display Capacity: Supports up to 8 segments × 6 digits (common anode configuration).

• Keyboard Scanning: Features an 8 × 2 bit matrix with enhanced anti-interference circuitry for reliable key detection.

• Brightness Control: Integrated 8-level duty cycle adjustment for display dimming.

• Oscillation: Built-in RC oscillator (450KHz ± 5%).

• Automatic Features: Includes on-chip power-on reset circuitry and an automatic blanking circuit.

Functional Breakdown

1. 2-Wire Serial Interface: Unlike other drivers that use three wires, the TM1637 utilizes a 2-wire bus (CLK and DIO). The MCU controls the timing and data flow to configure the display and read the keyboard matrix.

2. Display Driving: The chip multiplexes the output pins to drive the segments and grids of the LED display, requiring fewer pins to manage high-segment-count displays.

3. Keyboard Matrix Scanning: The device continuously monitors the 8x2 button matrix. When a key is pressed, the chip detects the change and allows the MCU to query the button state, effectively offloading the real-time scanning requirement from your main controller.

Typical Applications

• Small Appliances: Control panels for induction cookers, microwave ovens, and electric pressure cookers.

• General Purpose Displays: Any application requiring a low-pin-count interface for 7-segment LED displays and user-input buttons.
