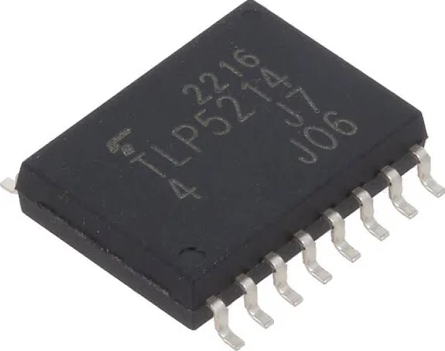

TLP5214 SMD MOSFET Power Module Driver Optocoupler TOSHIBA TLP5214A

Product Overview

A surface-mount, highly integrated smart gate driver optocoupler designed for isolated IGBT and power MOSFET gate drive applications. It incorporates advanced protection features including desaturation (DESAT) detection, isolated fault status feedback, soft turn-off, active Miller clamping, and under-voltage lockout (UVLO).

Core Specifications

• Manufacturer: TOSHIBA

• Package Type: SO16L (SMD)

• Function: Smart Gate Driver Optocoupler

• Peak Output Current: $\pm$4.0A

• Isolation Voltage: 5000 Vrms

• Part Number: TLP5214 / TLP5214A
