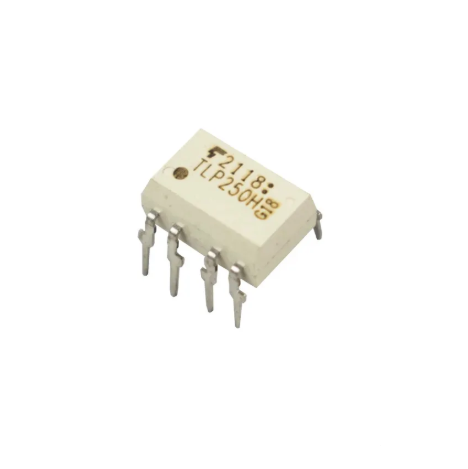

TLP250H MOSFET DIP8 TOSHIBA TLP250H(F)

Product Overview

The TLP250H(F) is an isolated, high-speed gate driver photocoupler (optocoupler) consisting of a GaAℓAs infrared light-emitting diode (LED) optically coupled to an integrated high-gain, high-speed photodetector IC.

Unlike the previously listed standalone power MOSFETs, this device serves as the isolated bridge between low-power control logic (like a microcontroller or PWM IC) and the high-power gates of power MOSFETs or IGBTs. It features an integrated totem-pole (push-pull) output stage capable of directly sinking and sourcing high peak currents, an internal Faraday shield providing exceptional common-mode transient immunity (CMTI), and a high operating temperature rating ideal for industrial environments.

It is widely implemented in industrial inverters, solar power systems, motor drive controls, and switch-mode power supplies (SMPS).

Core Specifications

• Manufacturer: Toshiba Electronic Devices & Storage Corporation

• Package Type: DIP-8 (Dual In-line Package / Through-Hole)

• Function: Isolated Gate Driver Photocoupler (Buffer Logic / Totem-Pole Output)

• Supply Voltage ($V_{CC}$): 10V to 30V

• Peak Output Current ($I_{OP}$): $\pm2.5\text{ A}$ (Maximum)

• Threshold Input Current ($I_{FLH}$): $5\text{ mA}$ (Maximum)

• Isolation Voltage ($BV_S$): $3750\text{ Vrms}$ (Minimum)

• Common-Mode Transient Immunity (CMTI): $\pm40\text{ kV/µs}$ (Minimum)

• Propagation Delay Time ($t_{pLH}/t_{pHL}$): $500\text{ ns}$ (Maximum)

• Operating Temperature Range ($T_{opr}$): $-40^\circ\text{C}$ to $+125^\circ\text{C}$
