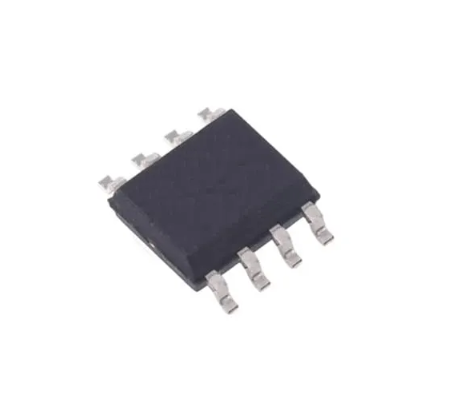

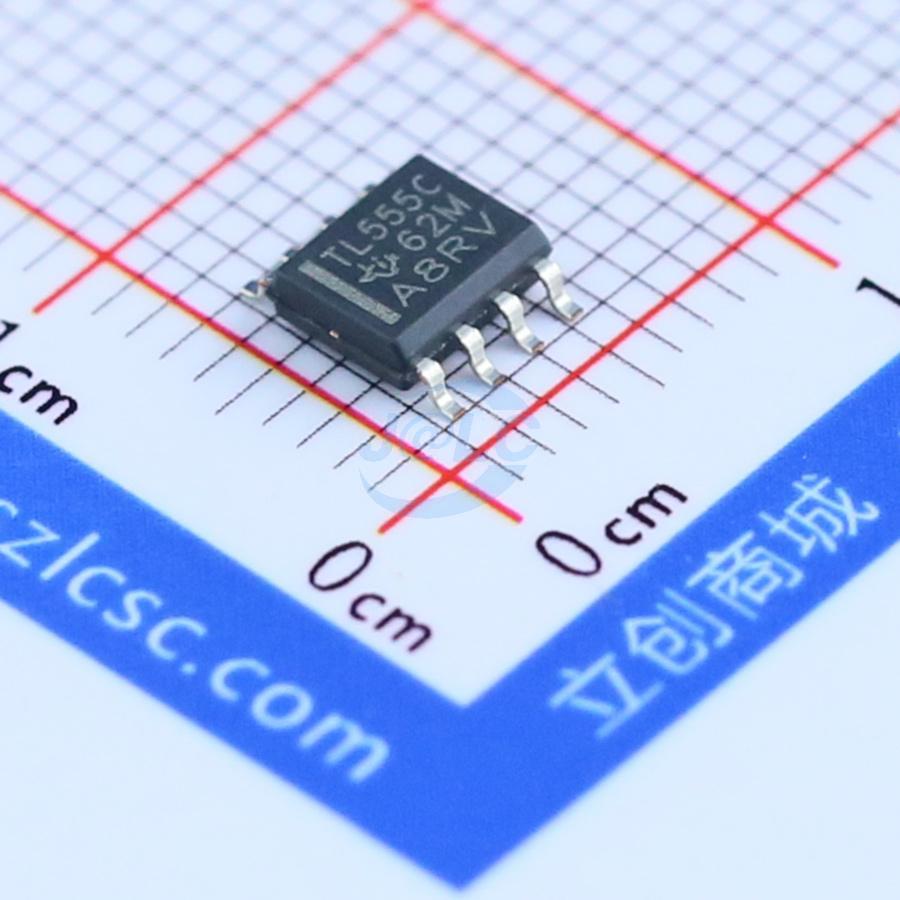

TLC555CDR SMD IC cmos timer 555 SOIC-8 TI TLC555CDR

Product Overview:

A surface-mount CMOS monolithic timing integrated circuit designed for precise timing applications, including pulse generation, sequential timing, and pulse-width modulation. It is pin-compatible with standard bipolar 555 timers but offers significantly lower power consumption and higher performance.

Core Specifications:

Manufacturer: Texas Instruments

Package Type: Available in various packages including SOIC and TSSOP

Function: CMOS Timer

Input Channels: N/A (Timing/Oscillator Component)

Control Interface: N/A (Analog/Digital Triggering via Threshold and Trigger pins)

Features:

• Extremely low power consumption (1 mW typical at $V_{DD} = 5V$)

• High-frequency operation (up to 2 MHz)

• Rail-to-rail CMOS output swing

• High output current capability (source: 10mA, sink: 100mA typical)

• Wide supply voltage range: 2V to 15V

• High input impedance allowing for smaller timing capacitors

• ESD protection exceeding 1000V (ANSI/ESDA/JEDEC JS-001)

Applications:

• Precision timing and time-delay generation

• Pulse generation and pulse-width modulation (PWM)

• Sequential timing and pulse-position modulation

• Linear ramp generator circuits

• General-purpose clock/oscillator applications
