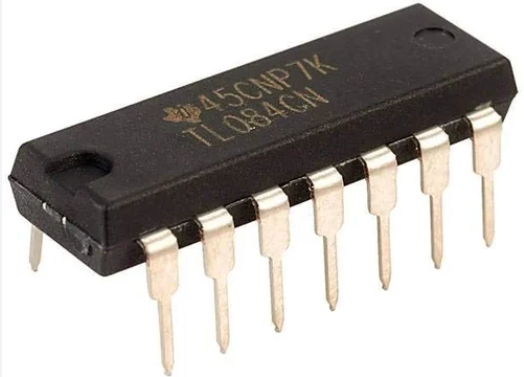

TL084CN IC DIP14 TI JFET OPAMP TL084CN

Product Overview

The TL084CN is a high-speed JFET-input quad operational amplifier featuring well-matched, high-voltage JFET and bipolar transistors integrated into a single monolithic circuit. The device delivers high slew rates, low input bias currents, low input offset currents, and a low temperature coefficient for offset voltage. It is widely implemented in application environments such as audio pre-amplifiers, active filters, data acquisition systems, and general analog signal processing loops.

Core Specifications

• Manufacturer: Texas Instruments

• Package Type: N Package (14-Pin PDIP, Plastic Dual In-Line Package)

• Function: Quad JFET-Input Operational Amplifier

• Input Voltage: Wide common-mode input voltage range including the positive supply rail, with an absolute maximum supply voltage rating up to positive or negative 18V

• Control Interface: Four independent operational amplifier channels, each consisting of an inverting input, a non-inverting input, and an output terminal, sharing common power supply pins.
