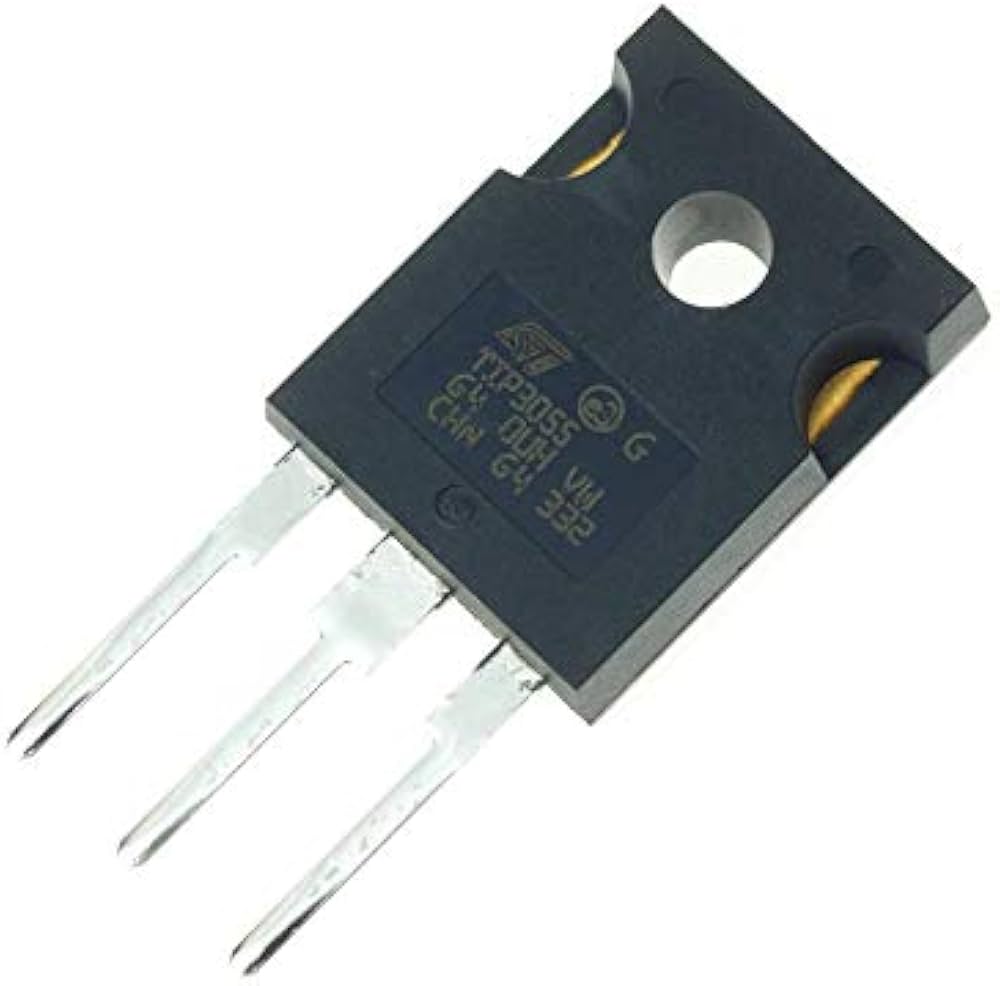

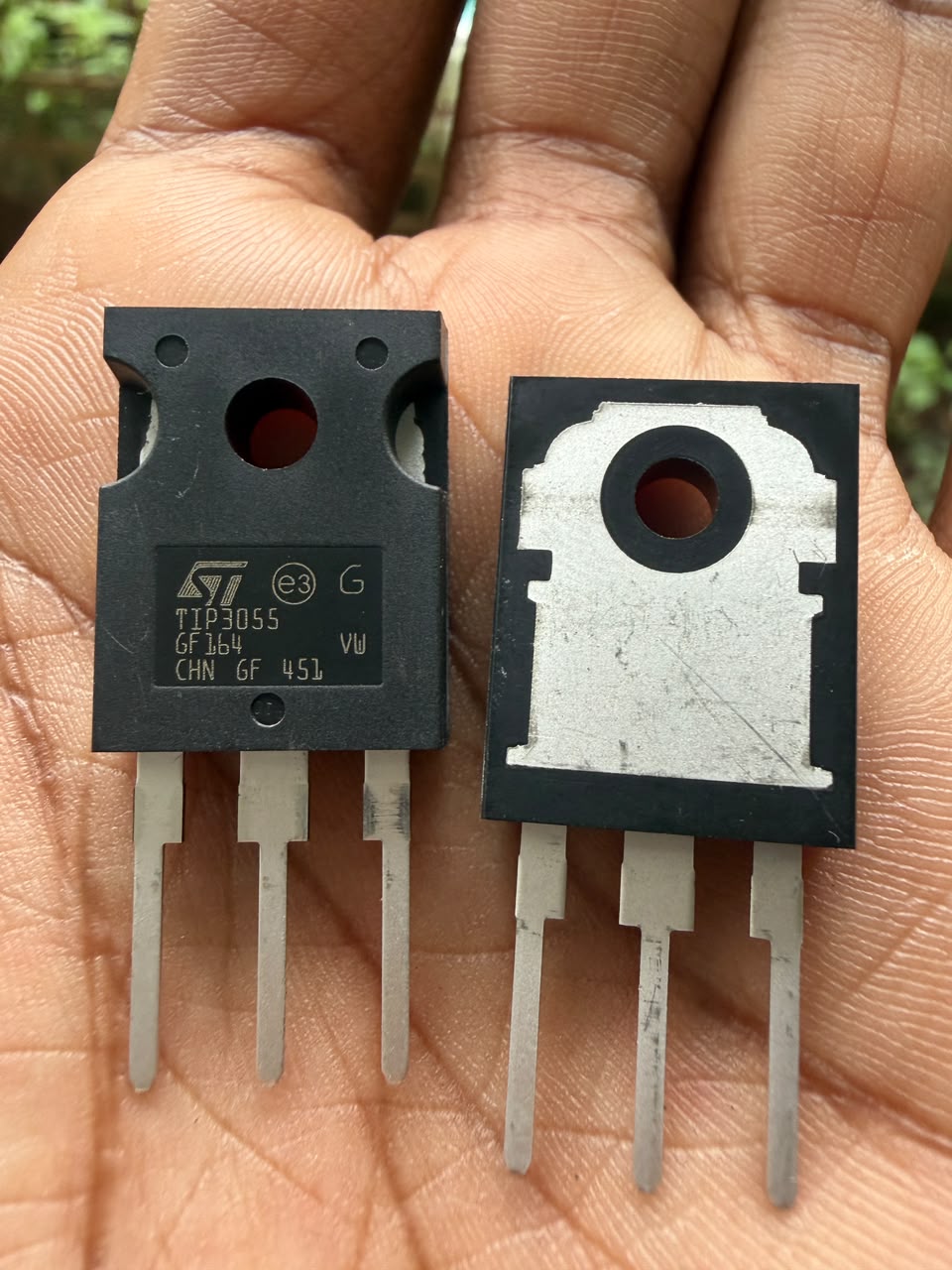

TIP3055 Transistor NPN TRANSISTOR 3055 ST TIP3055

Product Overview

The TIP3055 is a high-power NPN silicon transistor designed for general-purpose switching and amplification. It is the plastic-packaged (TO-218/TO-247) version of the legendary 2N3055 metal-can transistor. Due to its high current handling and rugged design, it is a staple in linear power amplifiers, high-current voltage regulators, and switching power supplies. It is the NPN counterpart to the TIP2955.

Core Specifications

• Manufacturer: STMicroelectronics

• Package Type: TO-218 (or TO-247)

• Component Type: NPN Silicon Power Transistor

• Collector-Emitter Voltage ($V_{CEO}$): 60V

• Collector-Base Voltage ($V_{CBO}$): 100V

• Emitter-Base Voltage ($V_{EBO}$): 7V

• Continuous Collector Current ($I_C$): 15A

• Power Dissipation ($P_{tot}$): 90W (at $T_C = 25^\circ C$)

• DC Current Gain ($h_{FE}$): 20 to 70 (at $I_C = 4A, V_{CE} = 4V$)

• Transition Frequency ($f_T$): 800 kHz (Minimum)

• Marking Code: TIP3055

• Part Number: TIP3055
