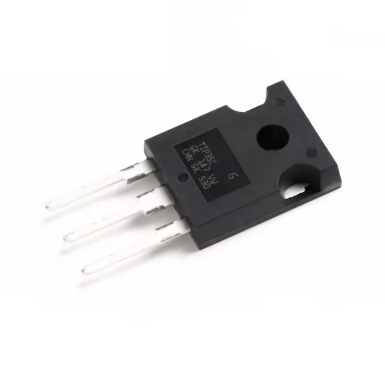

TIP147 Transistor PNP TRANSISTOR 147 ST TIP147

Product Overview

The TIP147 is a high-power, complementary PNP Darlington transistor designed for high-gain amplification and switching applications. Unlike a standard bipolar junction transistor (BJT), the TIP147 features a Darlington configuration—essentially two transistors connected internally to provide a very high DC current gain ($h_{FE}$). This makes it exceptionally efficient at driving large loads from very small input currents, often found in high-power audio amplifiers, heavy-duty motor controllers, and voltage regulation circuits. It serves as the PNP counterpart to the popular NPN TIP142.

Core Specifications

• Manufacturer: STMicroelectronics

• Package Type: TO-247 (Through-Hole)

• Component Type: PNP Darlington Power Transistor (Complement to NPN TIP142)

• Collector-Emitter Voltage ($V_{CEO}$): -100V

• Collector-Base Voltage ($V_{CBO}$): -100V

• Emitter-Base Voltage ($V_{EBO}$): -5V

• Continuous Collector Current ($I_C$): -10A

• Peak Collector Current ($I_{CP}$): -15A

• Power Dissipation ($P_{tot}$): 125W (at $T_C = 25^\circ C$)

• DC Current Gain ($h_{FE}$): 1000 (Minimum) at $I_C = 5A, V_{CE} = 4V$

• Marking Code: TIP147

• Part Number: TIP147
