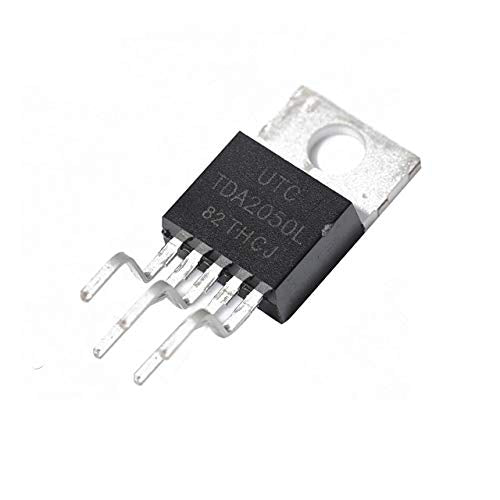

TDA2050L IC UTC 32W Amplifier Driver TDA2050L

Product Overview

The TDA2050L is a monolithic integrated circuit designed as a high-performance Class-AB audio power amplifier. It features high supply voltage capability and very low harmonic and crossover distortion, making it highly suitable for high-fidelity (Hi-Fi) audio systems and quality television setups. The device is equipped with built-in short-circuit and thermal shutdown protection mechanisms to ensure reliable operation under demanding load conditions.

Core Specifications

• Manufacturer: Unisonic Technologies Company (UTC)

• Package Type: TO-220B (Through-Hole Power Package, 5-Lead)

• Function: 32W Hi-Fi Audio Power Amplifier (Class AB)

• Output Power: Delivers up to 32W of continuous audio power or 50W of music power into a 4 $\Omega$ load

• Input Voltage: Supports single or split power supply operations up to an operating voltage of 50V

• Control Interface: Standard five-pin configurations including non-inverting input, inverting input, output, and power supply pins.
