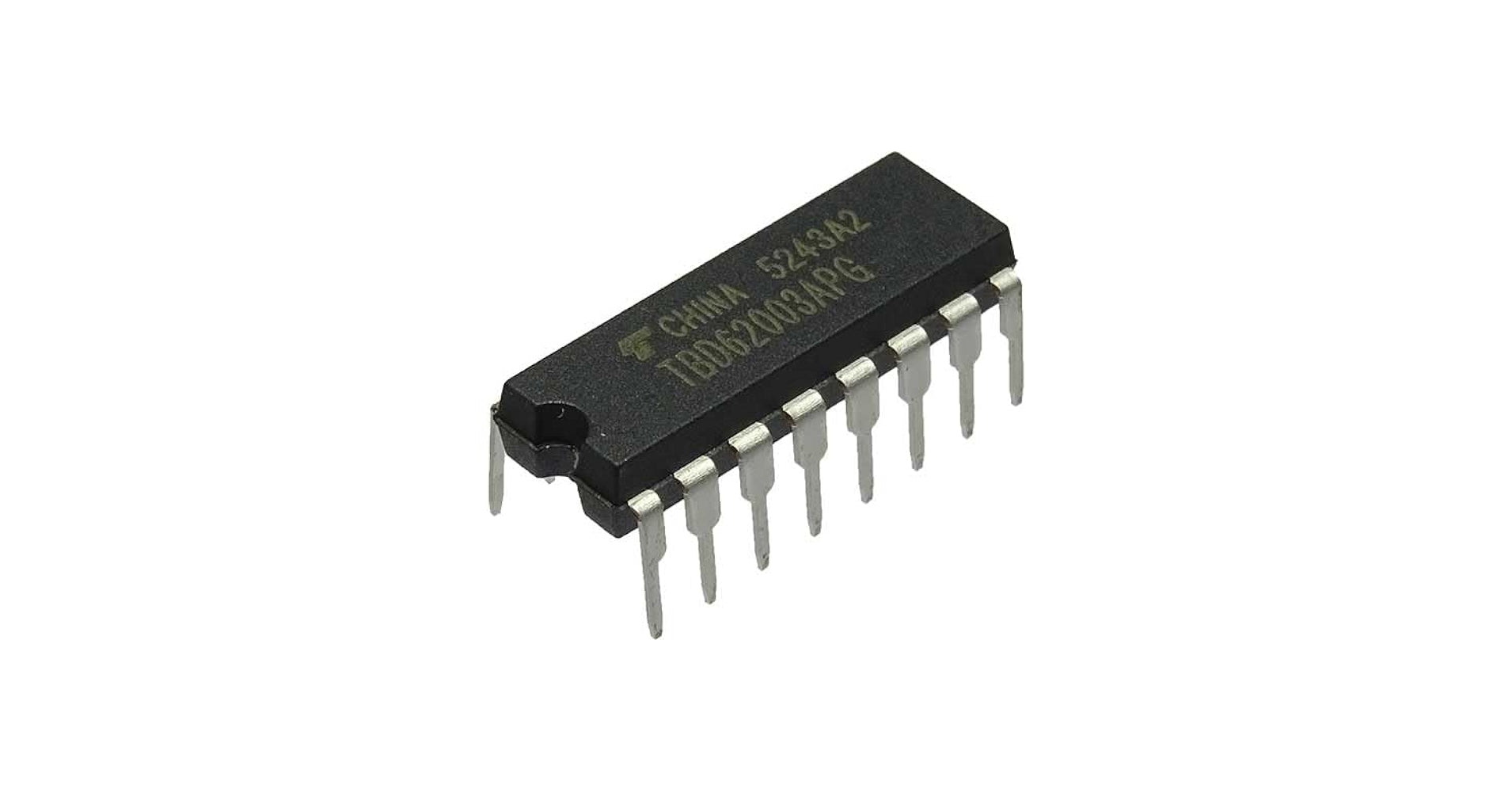

TBD62003 IC Toshiba DIP-16 TBD62003APG 62003 TOSHIBA TBD62003APG

Product Overview: A 16-pin through-hole integrated circuit featuring a 7-channel N-channel DMOS transistor array. Designed as a modern, high-efficiency upgrade to legacy bipolar Darlington arrays (such as the ULN2003), it utilizes DMOS technology to significantly reduce power dissipation and voltage drop. It features internal common-cathode clamp diodes, making it highly effective for driving inductive loads like relays, solenoids, DC motors, and stepper motors directly from 3.3V or 5V logic systems.

Core Specifications:

Manufacturer: Toshiba

Package Type: DIP-16 (Dual In-line Package)

Function: 7-Channel DMOS Transistor Array (Sink Output)

Maximum Output Voltage: 50V

Maximum Output Current: 500mA (per channel)

Logic Compatibility: 3.3V and 5V systems

Specific Variant: TBD62003APG
