SYN470R SMD IC SOP-16 JSMSEMI IC RF RX 300MHz/440MHz

Edit

Product Features:

• ASK/OOK RF receiver IC
• Frequency range: 300MHz to 440MHz
• Supports 315MHz and 433.92MHz wireless applications
• Supply voltage range: 2.0V to 5.5V
• High receiver sensitivity: -108dBm @ 433.92MHz
• Low operating current: 2mA @ 315MHz, 2.4mA @ 433.92MHz
• Standby current: 0.01µA
• Maximum data rate: 10kbps
• Compatible with SYN470R without external circuit changes
• Standard CMOS data output interface

Manufacturer: JSMSEMI
Manufacturer Part Number: SYN470R
Package: SOP-16

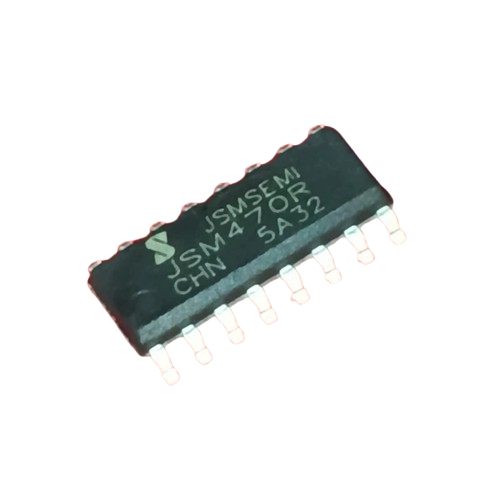

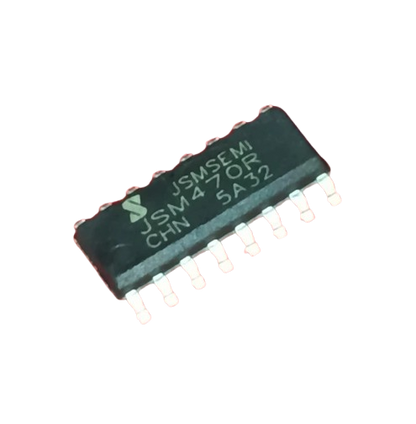

Marking Code: JSM470R
Mounting Type: Surface Mount (SMD)
