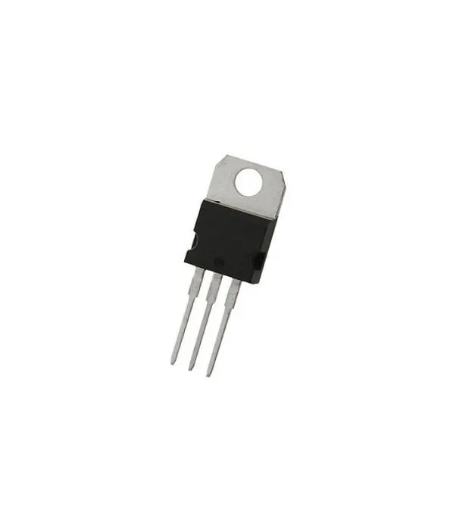

STP105N3LL MOSFET N Channel TO220 30V 150A 105N3LL STMicroelectronics STP105N3LL

Product Overview:

A through-hole N-channel STripFET power MOSFET designed for low-voltage, high-current switching applications such as DC-to-DC converters, power management systems, motor drivers, and battery management systems (BMS) requiring exceptionally low on-resistance and minimal gate drive losses.

Core Specifications:

Manufacturer: STMicroelectronics

Package Type: TO-220 (Through-Hole)

Function: N-Channel Power MOSFET

Drain-Source Voltage (Vds): 30V

Continuous Drain Current (Id): 150A

On-State Resistance (Rds(on)): 2.7mΩ (Typical) / 3.5mΩ (Maximum)
