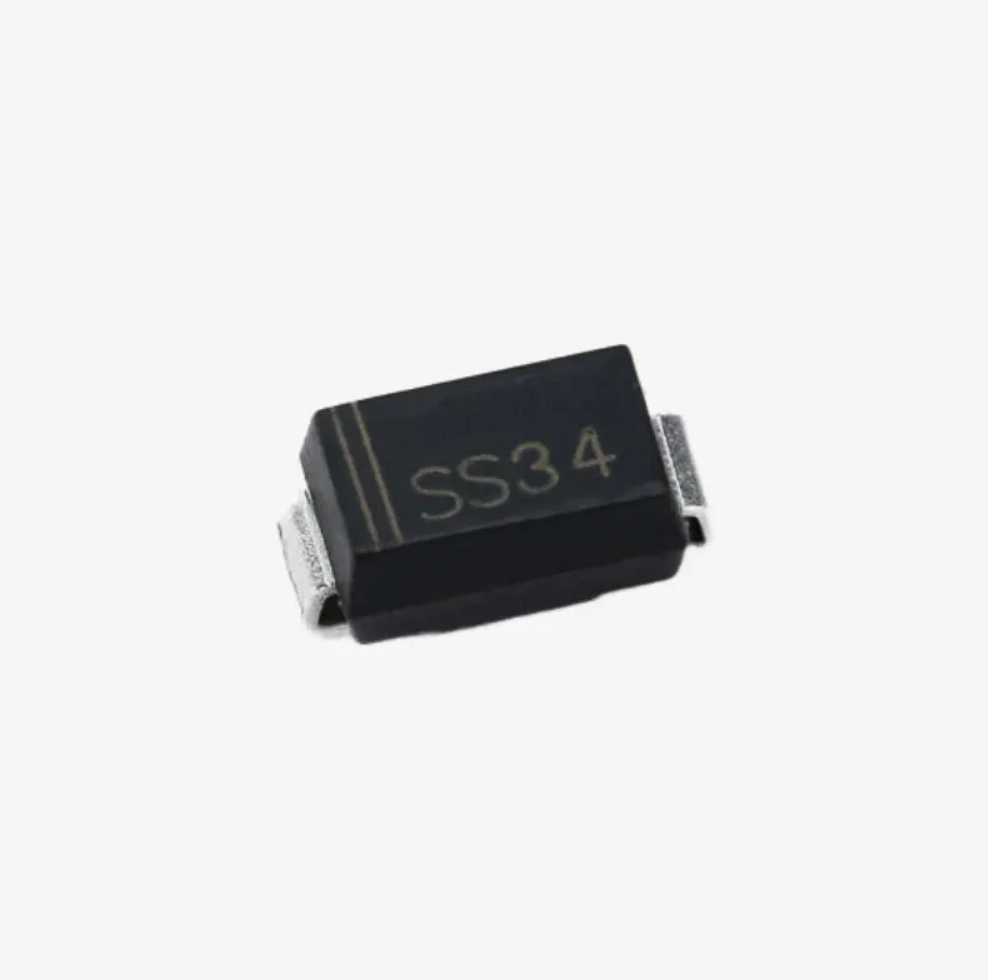

SS34A SMD IC Schottky Diode DO-214AC 40V 3A hottech SS34A

Product Overview:

The SS32A through SS320A series are Schottky barrier diodes designed for efficient power rectification. These devices are constructed in a compact SMA (DO-214AC) surface-mount package, making them ideal for high-frequency applications, such as power supplies and inverters, where low power loss and high efficiency are critical.

Core Specifications:

• Manufacturer: Hottech Electronic

• Package Type: SMA (DO-214AC)

• Function: Schottky Barrier Diode

• Reverse Voltage Range: 20V to 200V (depending on the specific part number)

• Construction: Molded plastic case with a guard ring for over-voltage protection

Features:

• Efficiency: Features low power loss and high switching speeds due to the Schottky barrier technology.

• Durability: High-temperature soldering is guaranteed up to 260°C for 10 seconds at the terminals.

• Safety: Includes a guard ring for over-voltage protection to ensure system reliability.

• Compliance: The casing is made of molded plastic rated with a UL 94V-0 flammability classification.

Applications:

• Power Supplies: Used as rectifiers in low-voltage, high-frequency power converters.

• Polarity Protection: Protects sensitive circuitry from reverse voltage connections.

• Inverters: Ideal for high-speed switching environments found in power electronics.

• Freewheeling: Acts as a flyback diode in inductive switching circuits to prevent voltage spikes.
