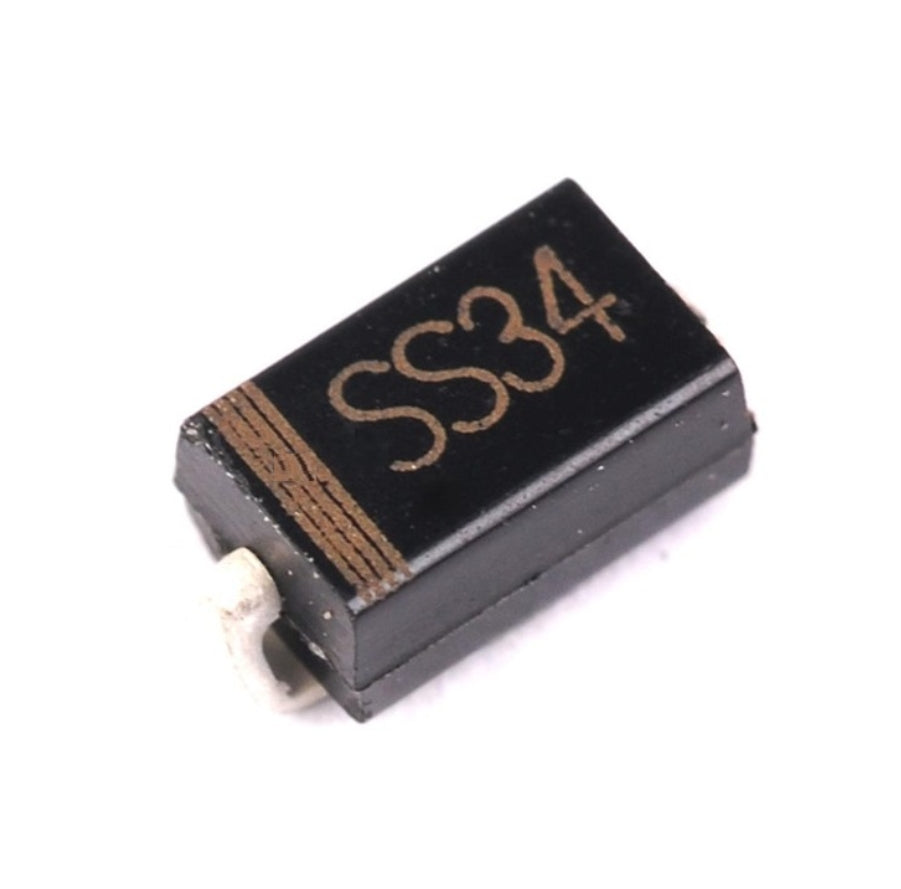

SS34 Diode SMD DO-214AC 40V 3A SS34A Schottky Diode SMD hottech

The SS34A is a 40V, 3A silicon Schottky barrier rectifier diode manufactured by Guangdong Hottech Industrial Co., Ltd. (Hottech) for high-efficiency power rectification, freewheeling paths, and reverse polarity protection applications. Housed in a compact surface-mount DO-214AC (SMA) molded plastic package, this discrete component features a single diode configuration designed with a low profile to optimize automated board placement. It operates with a maximum average forward rectified current of 3A while exhibiting a low forward voltage drop of 550 mV at a 3A test current. Engineered with a high non-repetitive peak forward surge current capability of 80A and low reverse leakage, this robust device delivers reliable performance across an operating junction temperature range from minus 55 to plus 150 degrees Celsius.
