SS24 Diode SMD SS24-MS SMA DO-214AC MSKSEMI 40V 2A Schottky Diode SS24

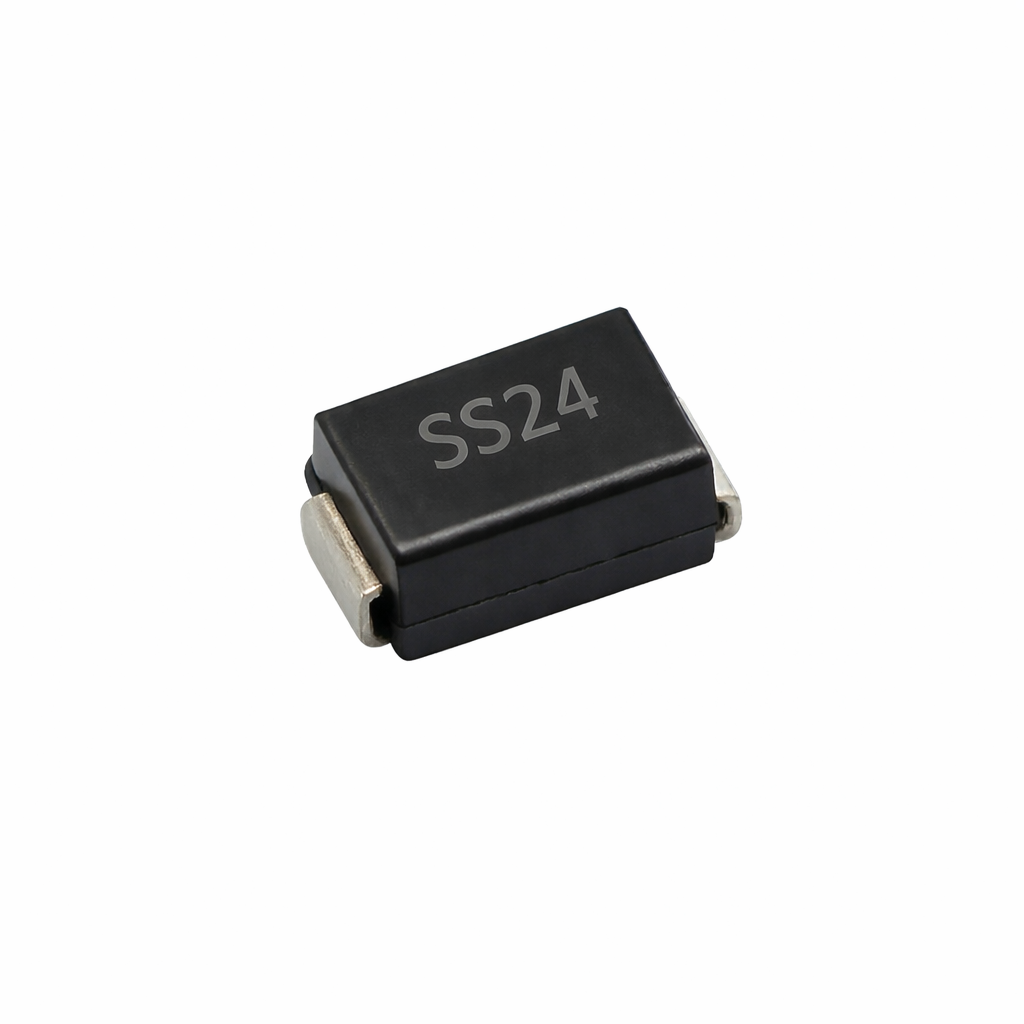

The SS24-MS is a 40V, 2A silicon Schottky barrier rectifier diode manufactured by Msksemi Semiconductor Limited (MSKSEMI) for high-efficiency power rectification, freewheeling paths, and reverse polarity protection applications. Housed in a compact surface-mount DO-214AC (SMA) molded plastic package, this discrete component features a single diode configuration designed with built-in strain relief to optimize automated board placement. It operates with a maximum average forward rectified current of 2A while exhibiting a low forward voltage drop of 550 mV at a 2A test current. Engineered with a non-repetitive peak forward surge current capability of 50A and low reverse leakage, this robust device delivers reliable performance across an operating junction temperature range from minus 65 to plus 125 degrees Celsius.
