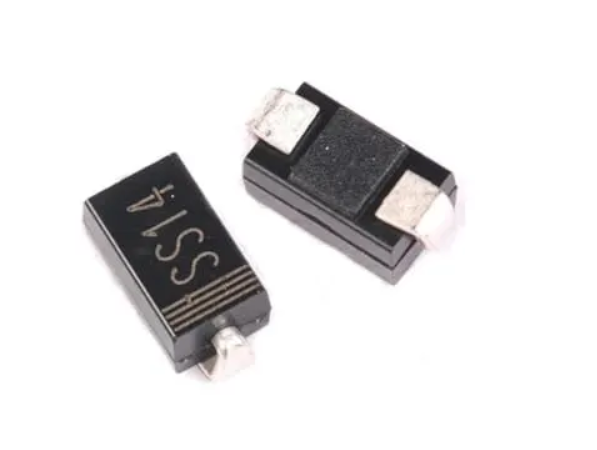

SS14 SMD IC Schottky Diode Rectifier 40V 1A DO-214AC SS14

Product Overview:

The SS12 through SS120 series are surface-mount Schottky barrier rectifiers designed for efficient power management. These devices utilize a metal-silicon junction with majority carrier conduction, which allows for fast switching and low power loss. They are packaged in a compact DO-214AC (SMA) case, making them ideal for automated assembly in high-frequency applications.

Core Specifications:

• Manufacturer: JSMICRO Semiconductor

• Package Type: DO-214AC (SMA)

• Function: Schottky Barrier Rectifier

• Reverse Voltage Range: 20V to 200V (depending on the specific model)

• Construction: Plastic package with a UL 94V-0 flammability rating

Features:

• High Efficiency: Low power loss and fast switching speed characteristics due to Schottky barrier technology.

• Automated Assembly: Built-in strain relief makes them well-suited for high-speed pick-and-place manufacturing.

• Thermal Reliability: High-temperature soldering is guaranteed up to 260°C for 10 seconds at the terminals.

• Robustness: High forward surge current capability allows for reliable operation in power-switching environments.

Applications:

• Surface Mounted Circuits: Optimized for compact PCB designs.

• Power Conversion: Used in high-frequency, low-voltage power supplies and DC-DC converters.

• Polarity Protection: Protects sensitive electronics against accidental reverse voltage.

• Inverters and Freewheeling: Effectively manages inductive loads and high-speed switching requirements in power electronics.
