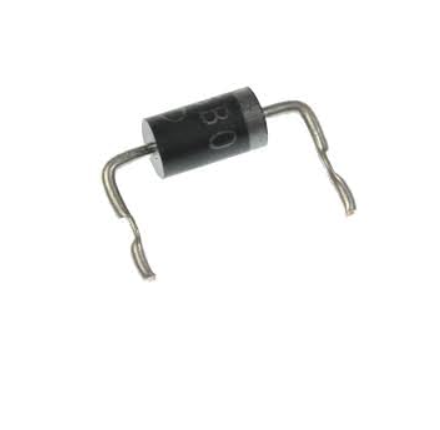

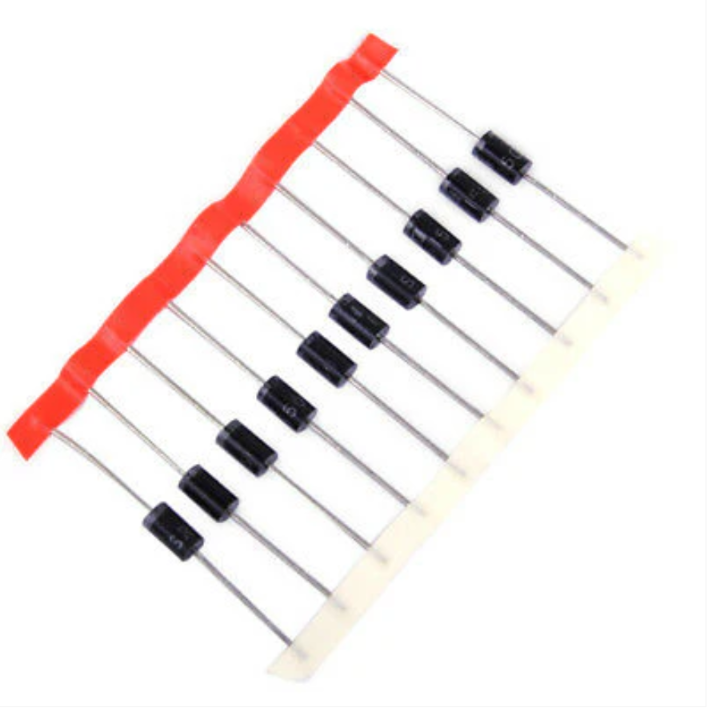

SR5150 Diode Schottky diode,rectifier 5A 150V SR 5150 Diode SR-5150

Product Overview

The component detailed in the documentation is the SR502-SR520 series Schottky Barrier Rectifier. It operates on the principle of a single-die Schottky junction equipped with an integrated guard ring to provide overvoltage protection, low power loss, and high efficiency. The rectifier is rated for a continuous forward current of 5A and supports a repetitive peak reverse voltage range spanning from 20V to 200V.
