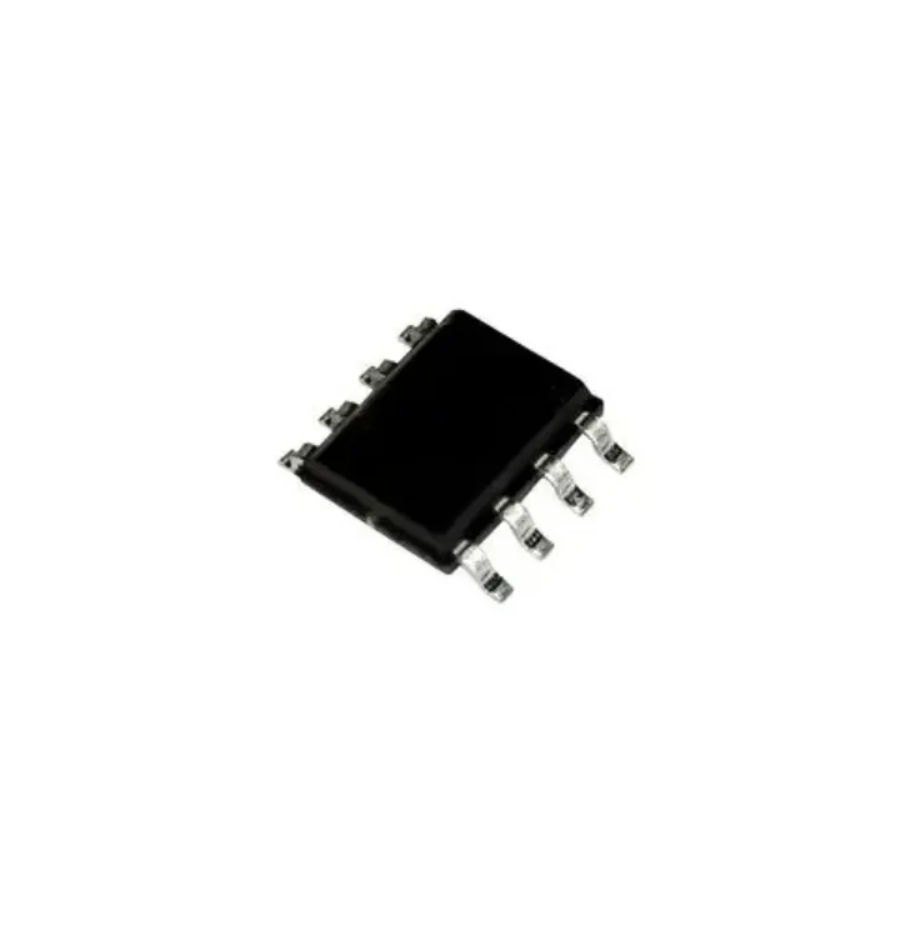

SN75176BDR SMD IC SOIC8 TI RS485 SN75176BDR

Product Overview:

A surface-mount, differential bus transceiver integrated circuit designed for bidirectional data communication on multipoint bus transmission lines. It combines a 3-state differential line driver and a differential input line receiver, optimized for balanced transmission lines in noisy environments and fully meeting ANSI Standards TIA/EIA-422-B and TIA/EIA-485-A.

Core Specifications:

Manufacturer: Texas Instruments

Package Type: Available in 8-pin SOIC (D), 8-pin PDIP (P), and 8-pin SOP (PS) packages

Function: Differential Bus Transceiver (RS-422 / RS-485)

Input Channels: 1 Single-Ended Driver Input (D), 1 Differential Receiver Input Pair (A, B)

Control Interface: Individual Driver Enable (DE) and Receiver Enable  Digital Inputs
