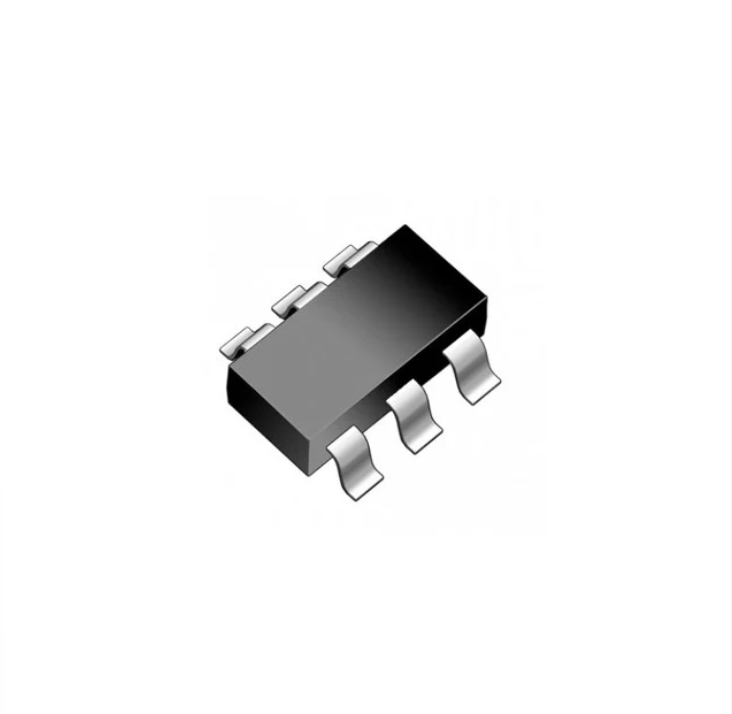

SN74LVC2G14DBVR SMD IC Inverter SOT23-6 7414 SN74LVC2G14DBVR

Product Overview:

A surface-mount, dual Schmitt-trigger inverter integrated circuit designed for high-speed logic level shifting and signal conditioning. It is optimized to operate across a wide supply voltage range and supports live insertion, making it suitable for robust digital control and interface applications.

Core Specifications:

Manufacturer: Texas Instruments

Package Type: Available in various packages, including SOT-23, VSSOP, and NanoFree™ (DSBGA)

Function: Dual Schmitt-Trigger Inverter

Input Channels: 2 Independent Inverter Channels

Control Interface: Direct Logic Input (Schmitt-Trigger)

Features:

• Supports 5V  operation

• Inputs accept voltages up to 5.5V, allowing for level translation (e.g., 5V to 3.3V)

• Low-power consumption (10 µA maximum)

• High output drive capability (+24 mA at 3.3V)

•  feature supports live insertion and partial-power-down mode

• Integrated ESD protection per JESD 78 Class II

Applications:

• Body and engine control modules

• Servers and high-performance computing systems

• Signal conditioning and noise filtering

• Digital interface level shifting

• Arcade and industrial control systems
