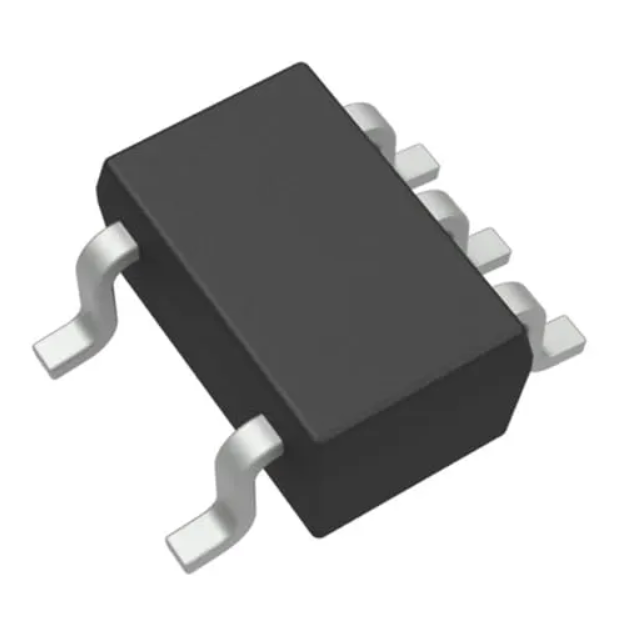

SN74LVC1G32DCKR SMD IC UMW SC70-5 SN74LVC1G32DCKR(UMW)

Product Overview:

A surface-mount, single 2-input OR gate integrated circuit designed for high-speed logic applications in space-constrained electronic designs. It offers performance characteristics comparable to larger multi-gate LCX series devices while being housed in tiny footprint packages.

Core Specifications:

Manufacturer: UMW

Package Type: SC70-5, SOT23-5, or DFN6 (Tiny Footprint)

Function: Single 2-Input OR Gate

Input Channels: 1 Channel (2-Input OR)

Control Interface: Direct Logic Input

Features:

• Tiny packaging for space-limited PCB designs

• High-speed operation: 2.4 ns propagation delay at 5 V (typical)

• High drive capability: Source/Sink 24 mA at 3.0 V

• Wide supply voltage range: 1.65 V to 5.5 V

• Over-voltage tolerant inputs

• Pb-Free and RoHS compliant

Applications:

• Logic signal buffering and level shifting

• Space-constrained embedded control systems

• High-speed peripheral data communication

• General-purpose digital signal routing
