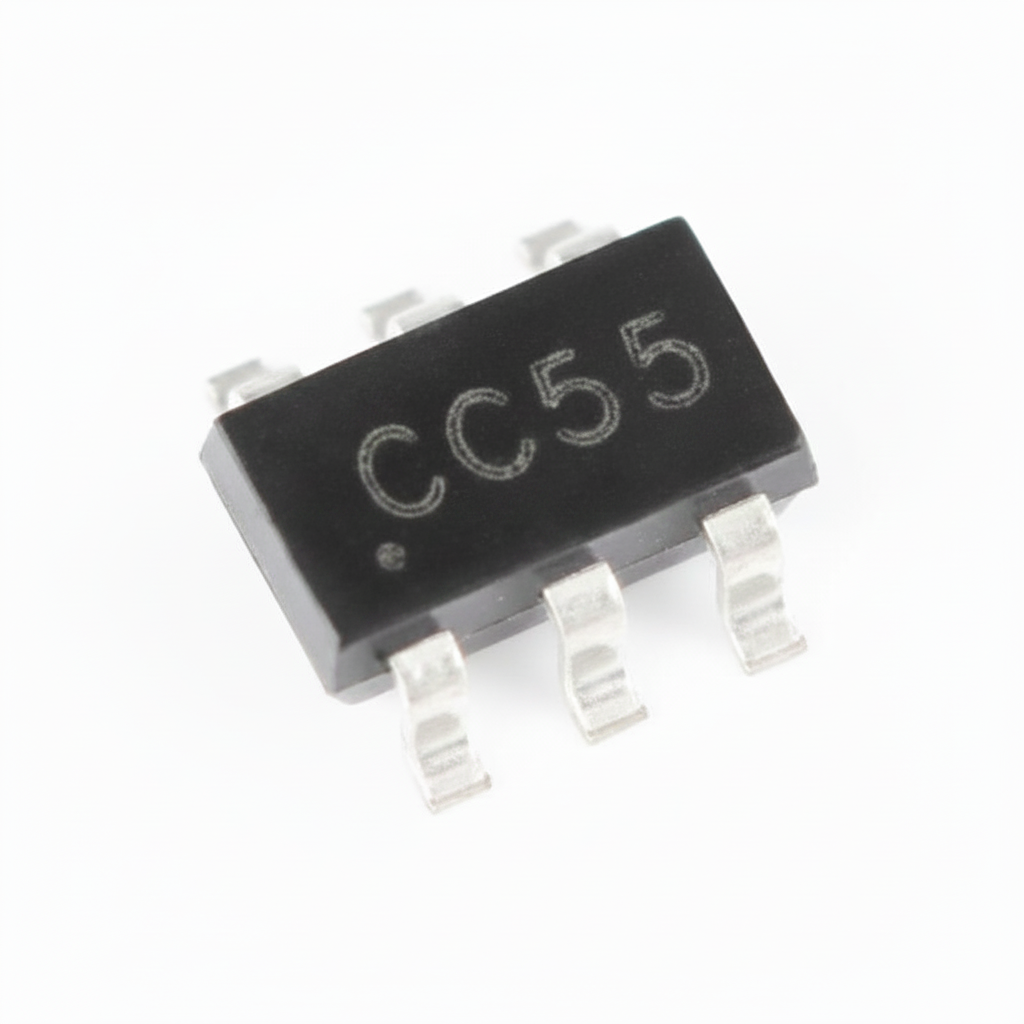

SN74LVC1G3157DBVR Analog Switch Texas Instruments SPDT SOT-23-6 SN74LVC1G3157DBVR

Product Overview

The SN74LVC1G3157, manufactured by Texas Instruments, is a high-speed, single-pole, double-throw (SPDT) analog switch. It is designed for both analog and digital signal switching applications and operates over a wide voltage range of 1.65 V to 5.5 V.

Core Specifications

• Manufacturer: Texas Instruments.

• Function: Single-pole, double-throw (SPDT) analog switch.

• Operating Voltage: 1.65 V to 5.5 V VCC.

• On-State Resistance (Ron): Typically 6 Ohm at VCC = 4.5 V.

• Switching Speed: Typically 0.5 ns.

• Signal Handling: Rail-to-rail signal handling capability with a high degree of linearity.

Key Features

• Break-Before-Make Switching: Ensures that the connection to one channel is broken before the connection to the other is made, preventing shorting of the two input signals.

• Versatile Application: Suitable for both analog signal routing and high-speed digital switching.

• ESD and Latch-Up Protection: Exceeds JESD 78 (Class II) for latch-up performance and provides robust ESD protection (2000-V Human-Body Model).

• Package Options: Available in various compact packages, including SOT-23 (DBV), SC-70 (DCK), and DSBGA (YEP/YZP).

Applications

• Signal Multiplexing: Used to select between two different analog signals or digital data paths.

• Data Routing: Ideal for high-speed digital systems requiring fast signal switching.

• Consumer Electronics: Utilized in portable devices where space-saving and low-voltage operation are required.
