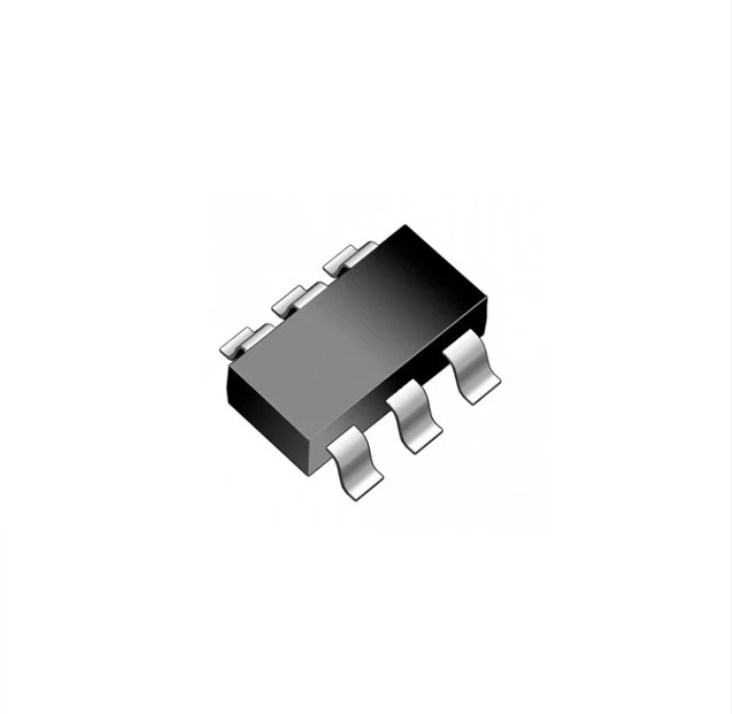

SN74LVC1G14DBVR SMD IC Schmitt Trigger NOT gate SOT23-5 UMW 7414 SN74LVC1G14DBVR

Product Overview:

A surface-mount single-channel Schmitt-trigger inverter integrated circuit designed for high-end precision instruments, artificial intelligence, and low-power handheld devices.

Core Specifications:

Manufacturer: UMW

Package Type: Various (DBV, DCK, DRL, YZP, DRY, DSF, DPW)

Function: Schmitt-trigger Inverter (NOT gate)

Supply Voltage (VCC): 1.65 V to 5.5 V

Features:

• Low input current (0.1 µA typical)

• Low quiescent power consumption (0.1 µA typical)

• High output drive capability (e.g., >32 mA at 4.5 V VCC)

• Advanced CMOS process technology

Applications:

• Portable audio interfaces

• Blu-ray players and home theater systems

• Digital TVs

• Solid-state drives (SSD)

• Intelligent wearable devices (e.g., wireless headphones, smart watches)
