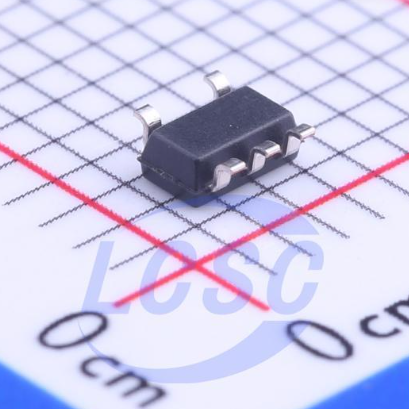

SN6501DBVR SOT-23-5 SMD IC Power Management 6501 TEXAS Instruments

Product Features:

Push-pull driver for small transformers
Single 3.3V or 5V supply operation
High primary-side current drive: 350mA max at 5V supply
High primary-side current drive: 150mA max at 3.3V supply
Low ripple on rectified output allows small output capacitors
Integrated oscillator and complementary gate-drive circuit
Break-before-make switching action to prevent transformer primary shorting
Switching frequency: 250kHz to 550kHz at 3.3V supply
Switching frequency: 300kHz to 620kHz at 5V supply
Low on-resistance: 0.6Ω typ at 5V, 1Ω typ at 3.3V
Average supply current: 300uA typ at 5V, 150uA typ at 3.3V

Manufacturer: Texas Instruments
Manufacturer Part Number: SN6501
Package: SOT-23-5

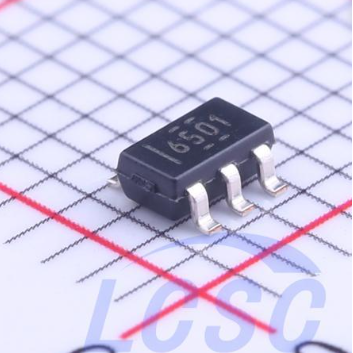

Marking Code: 6501
Mounting Type: Surface Mount (SMD)
