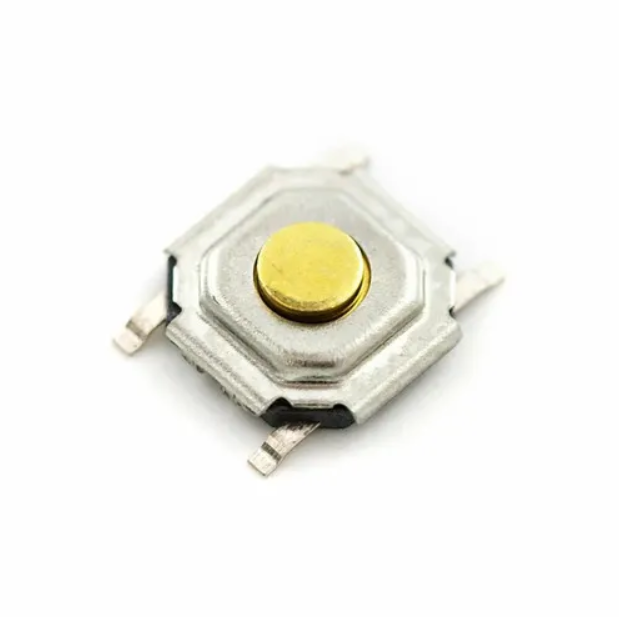

SMD Tactile SwitchTS3325A 250gf 025 3.35x3.35x2.5mm Round button SPST

Product Specifications

• Product Name: SMD Tactile Switch TS3325A 250gf 3.35×3.35×2.5mm

• Part Number: TS3325A 250gf 025

• Brand: Shenzhen Shouhan Technology

• Type: SMD Tactile Switch

• Configuration: SPST

• Rating: 50mA @ 12V DC

• Operating Force: 250±50gf

• Contact Resistance: ≤100mΩ

• Insulation Resistance: ≥100MΩ

• Travel: 0.15±0.10mm

• Life: 50,000 Cycles

• Mounting: SMD / PCB Mount
