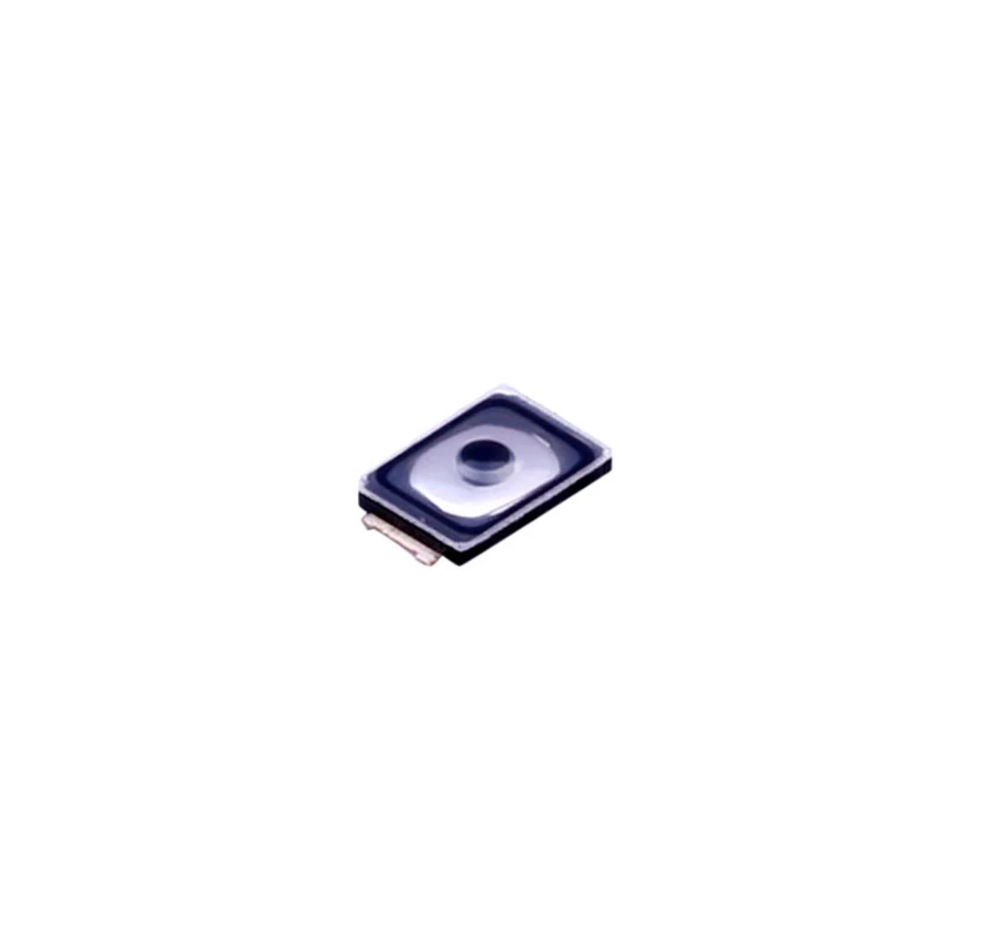

SMD Tactile Switch TS2306A 240gf MSM 9 3x2x0.6mm Round button SPST

Product Specifications

• Product Name: TS2306A 3×2×0.6mm SMD Tactile Switch

• Part Number: TS2306A 240gf MSM 9

• Type: SMD Tactile Switch

• Contact Current: 20mA

• Voltage Rating: 15V DC

• Operating Force: 240gf

• Insulation Resistance: ≥50MΩ

• Mechanical Life: 500,000 cycles

• Operating Temperature: -40°C to +85°C

• Size: 3 × 2 × 0.6mm

• Configuration: SPST
