G-Switch

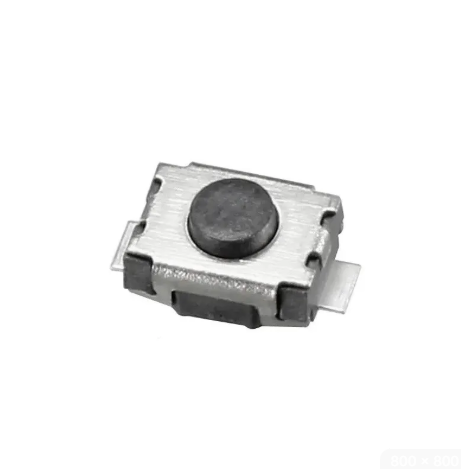

SMD Tactile Switch Round button SPST 3.3x3.3x2mm GT-TC026A-H020-L1
SMD Tactile Switch Round button SPST 3.3x3.3x2mm GT-TC026A-H020-L1
SKU:HZ5045
Regular price
Rs. 3.16
Regular price
Rs. 99.00
Sale price
Rs. 3.16
Shipping calculated at checkout.
100 in stock
Quantity
Couldn't load pickup availability
Product Specifications
-
Brand / Manufacturer: G-Switch Electronic (HongKong) CO.,Ltd.
-
Part Number:GT-TC026A-H020-L1
-
Product Type: Tactile Switch
-
Rating: 12V DC, 50mA
-
Contact Resistance: ≤ 100 mΩ
-
Insulation Resistance: ≥ 100 MΩ (at 100V DC)
-
Dielectric Strength: 250V AC for 1 minute
-
Operating Force: A: 180gf, B: 250gf, C: 90gf
-
Switch Height: 1.5 mm (H015), 2.0 mm (H020), 2.5 mm (H025), 3.0 mm (H030)
-
Travel: 0.20 ± 0.10 mm
-
Operating Life: 100,000 cycles
-
Operating Temperature Range: -30°C to +85°C
-
Compliance: RoHS compliant, Halogen-free, Pb-free
