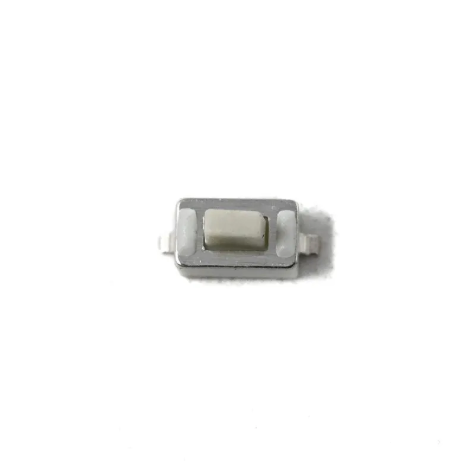

SMD Rectangle Tactile micro Switch button 50mA 12V TSB008A2530A 3.5x6x2.5Hmm

Product Specifications

• Product Name: SMD Rectangle Tactile Micro Switch TSB008A2530A

• Part Number: TSB008A2530A

• Brand: Zhejiang Bozhong Electronic

• Type: SMD Tactile Switch

• Rating: 50mA @ 12V DC

• Contact Resistance: ≤100mΩ

• Operating Force: ±50gf

• Travel: 0.20±0.10mm

• Insulation Resistance: ≥100MΩ

• Dielectric Strength: ≥250V AC / 1 Min

• Height: 2.5mm

• Life: ≥30,000 Cycles
