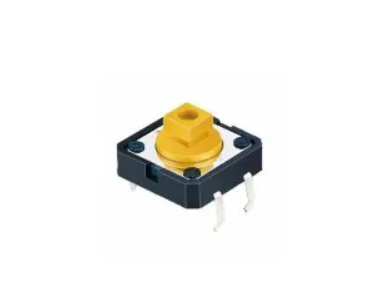

SMD PUSH BUTTON Tactile Switches 12x12x7.3mm TPFT-Y

Product Specifications

• Product Name: HX 12×12×7.3 Tactile Push Button Switch

• Model: HX 12×12×7.3TPFT-Y

• Type: Tactile Push Button

• Rating: 50mA @ 12V DC

• Size: 12×12mm

• Actuator Height: 7.3mm

• Operating Force: 250±50gf

• Contact Resistance: ≤100mΩ

• Insulation Resistance: ≥100MΩ

• Operating Temperature: -25°C to +70°C

• Life: 100,000 Cycles

• Mounting: PCB Mount

• Manufacturer: Shenzhen Hanxia Electronic Co., Ltd.
